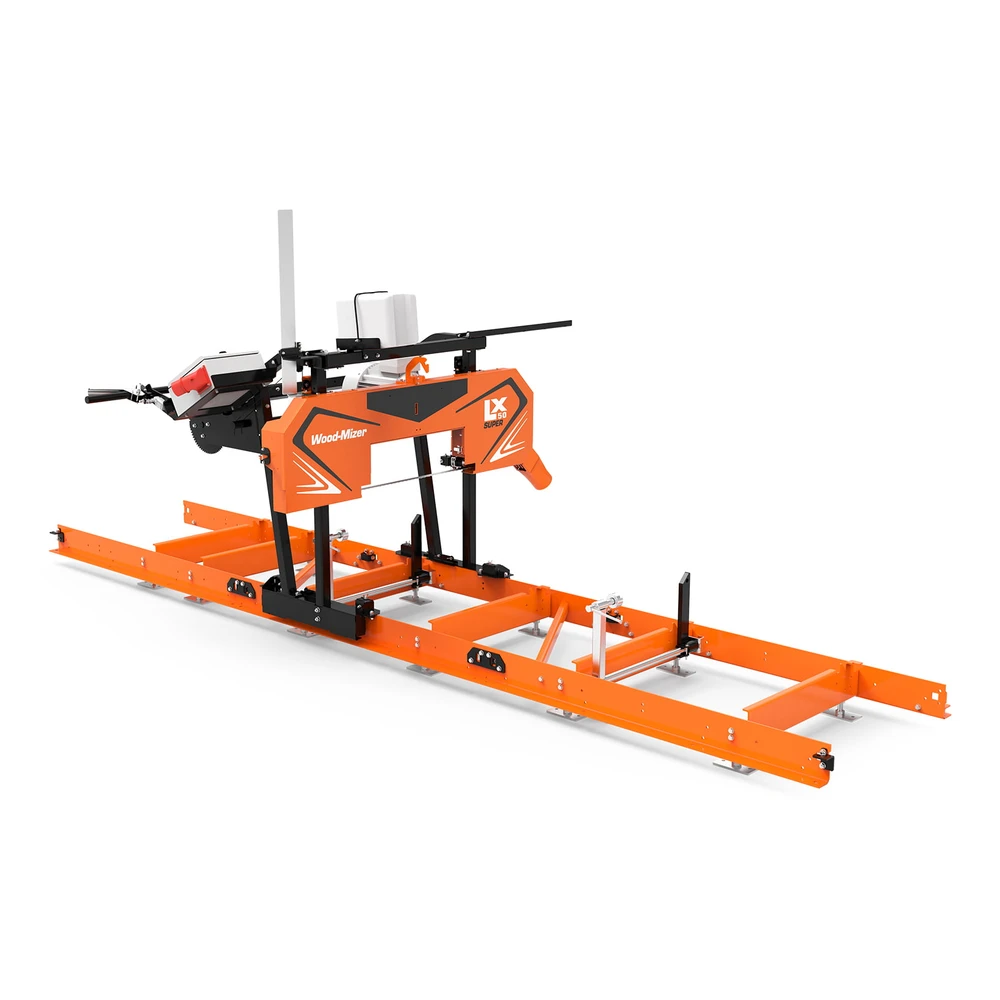

Wood-Mizer LX50 Super Sawmill
The Wood-Mizer LX50 Super is a compact, economical sawmill for hobbyists and small businesses. Part of the LX50 series, Wood-Mizer’s most compact and budget-friendly machines for processing logs into lumber, it combines a simple design with proven mechanical solutions and is ideal for novice sawyers who want efficient, precise wood processing.
It processes logs up to 66 cm in diameter and 3.7 m in length on its standard three-section bed, with optional 1.53 m bed segments for longer logs. The LX50 Super has a rigid xFRAME with a reinforced twin-rail bed and adjustable legs, and is powered by a 14 HP petrol engine or a 5.5 kW electric motor.
Key Features
- Cuts logs up to 66 cm in diameter and 3.7 m in length on the standard three-section bed
- Optional 1.53 m bed segments increase the maximum log length to 5.2 m

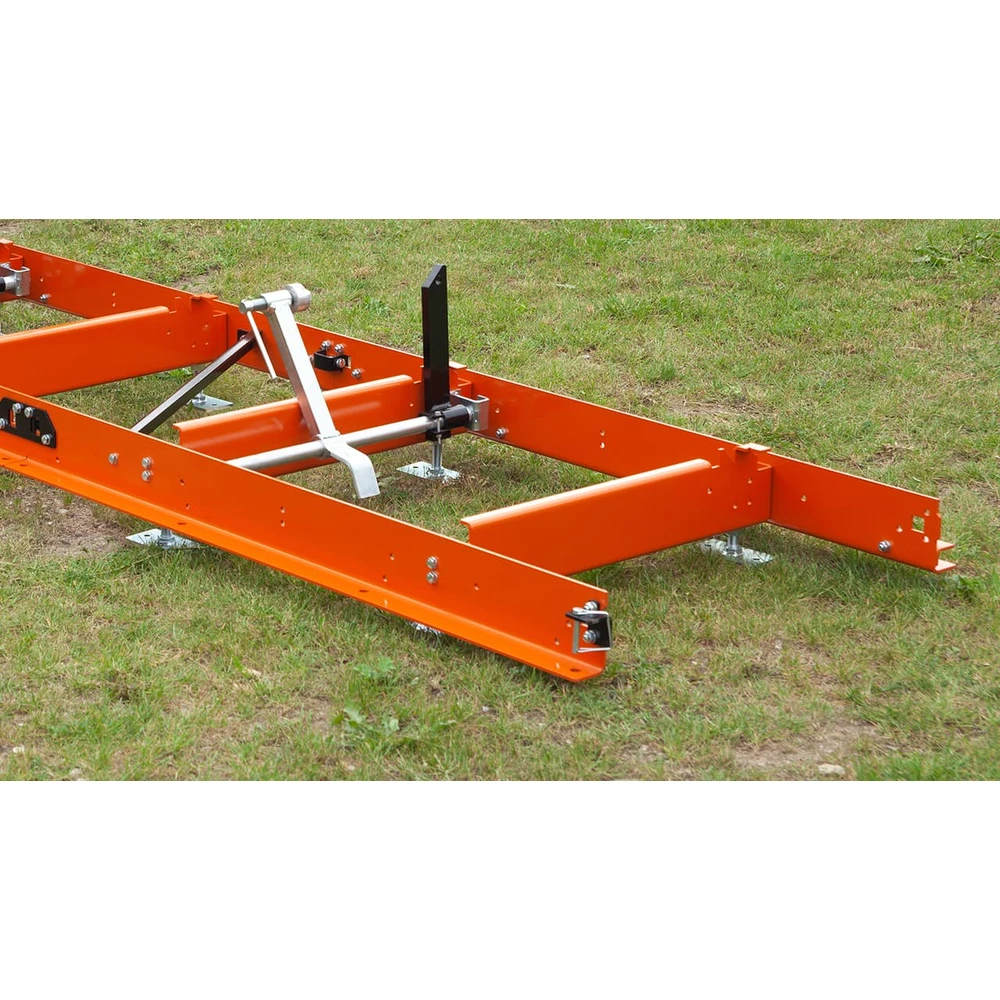

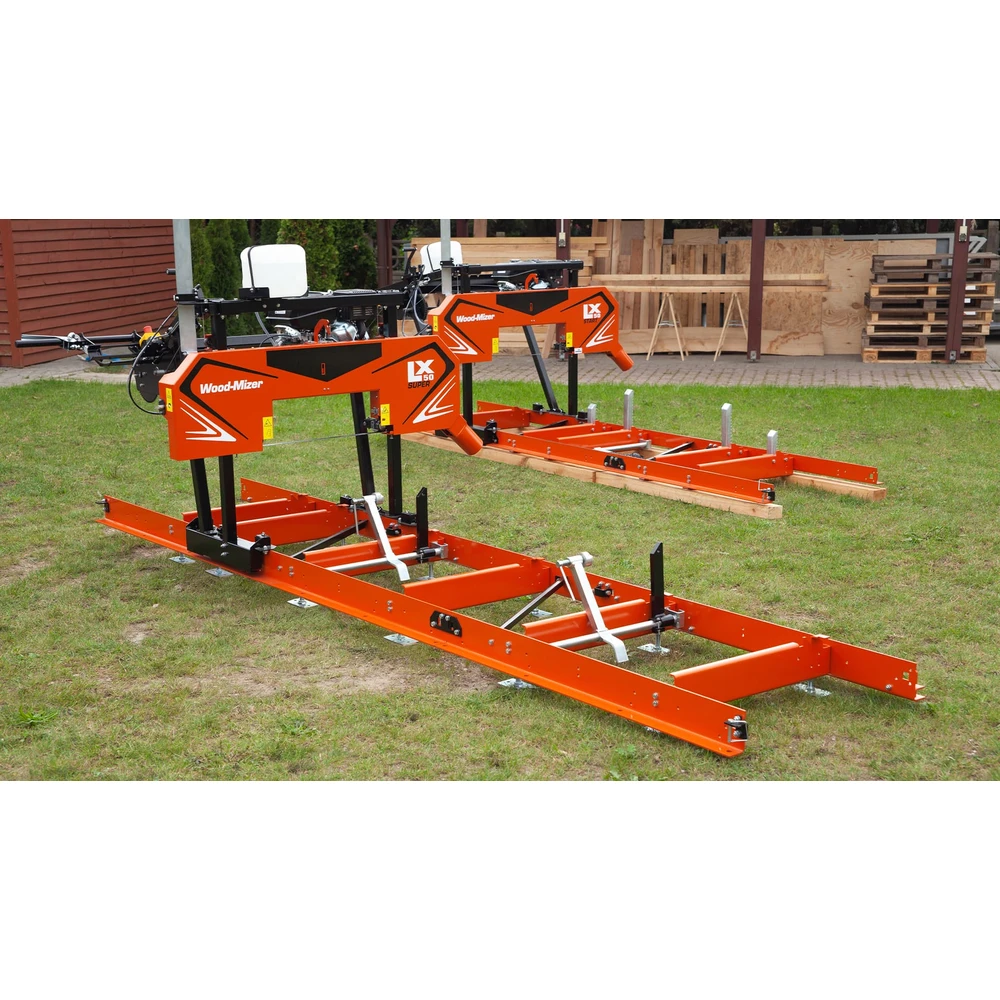

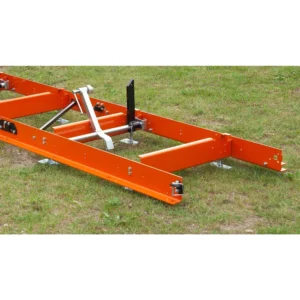

- Rigid xFRAME with reinforced twin-rail bed construction

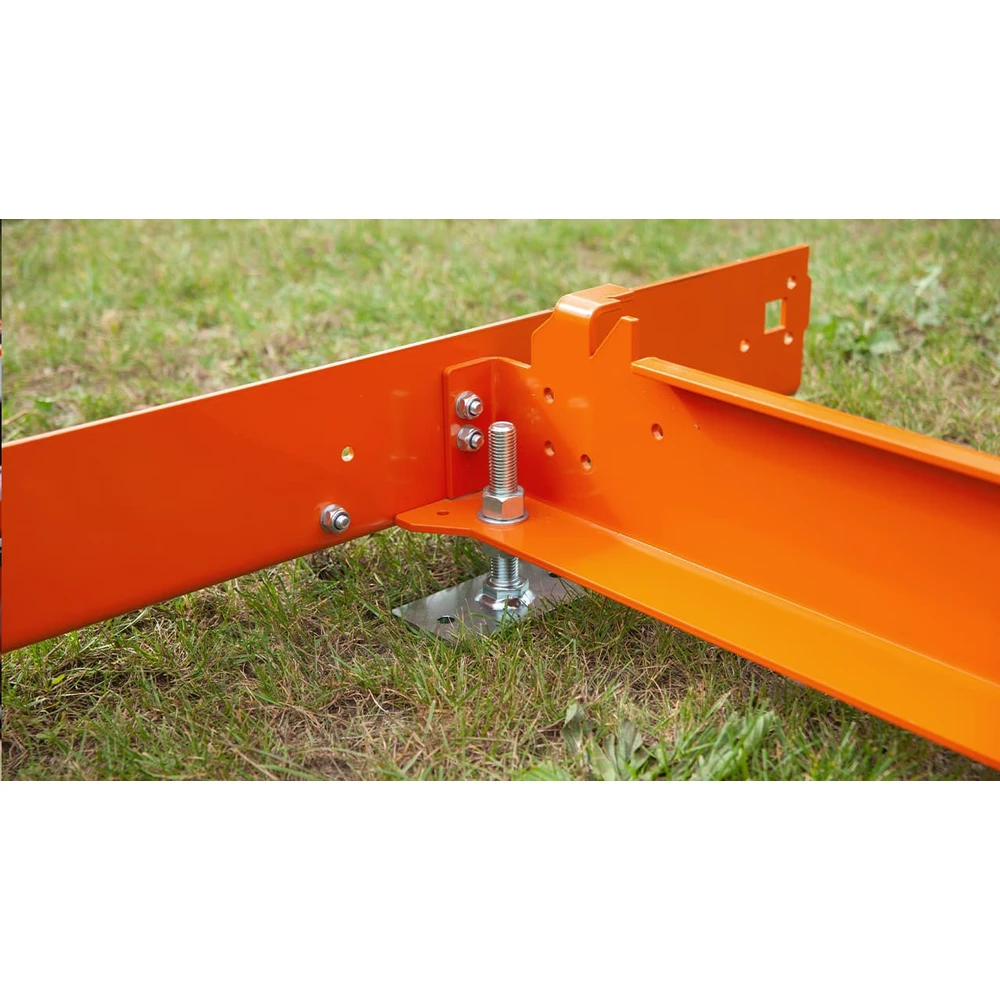

- Low-profile bed with adjustable legs for easy log loading and levelling

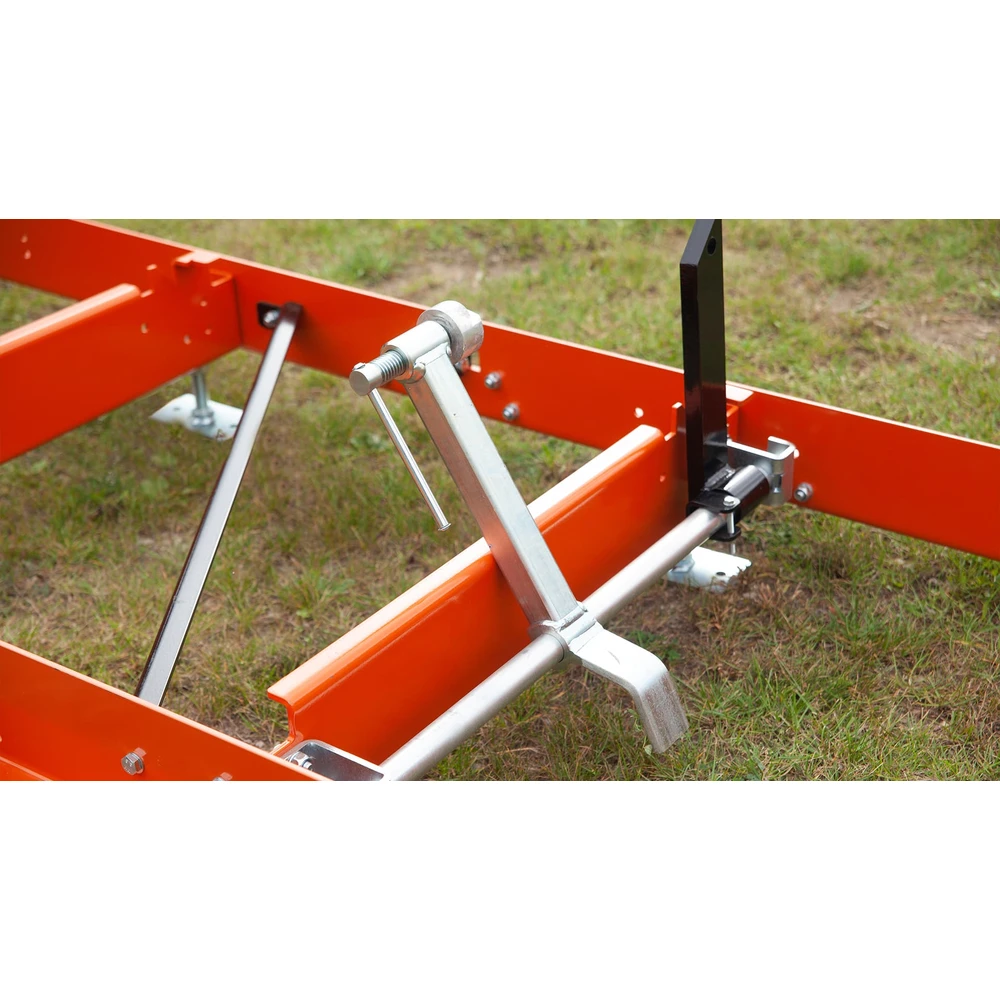

- Two manual log clamps and two folding side supports adjusted on a rod
- Maximum width of cut of 60 cm, with cants up to 55 cm wide and 20 cm deep

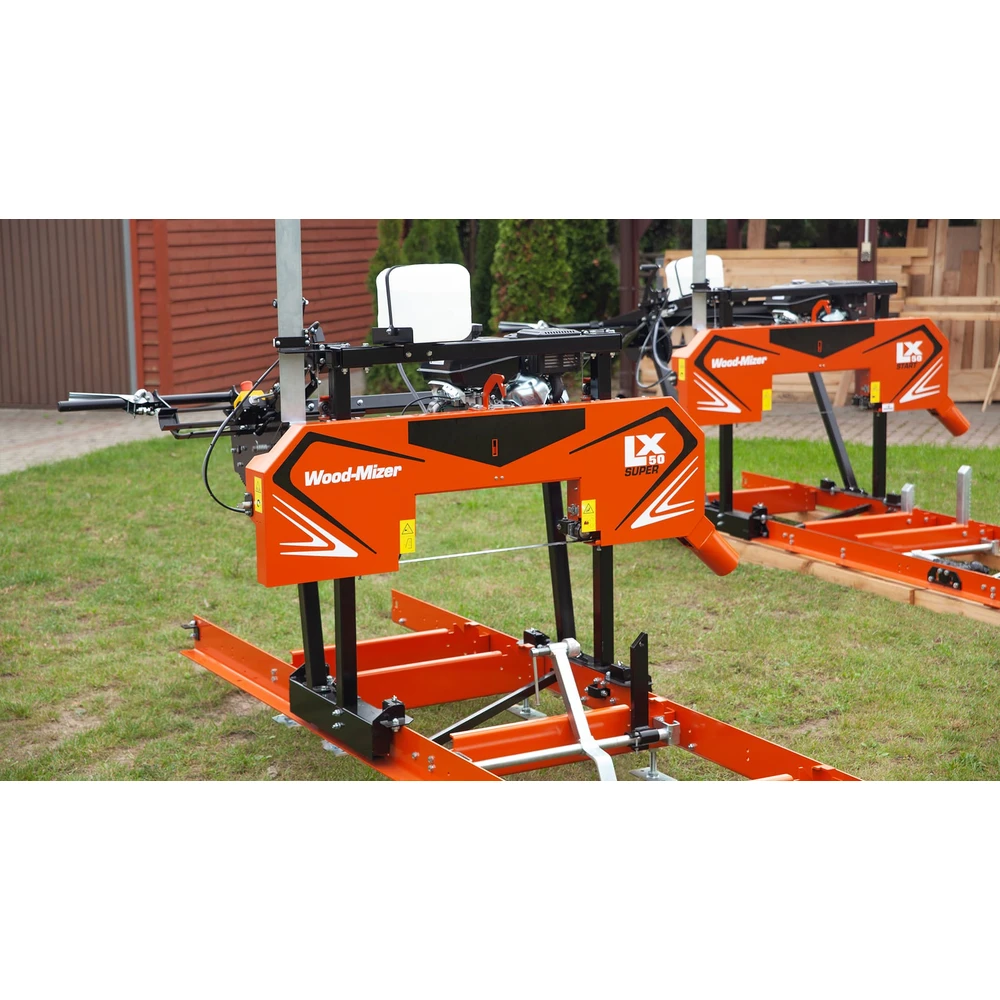

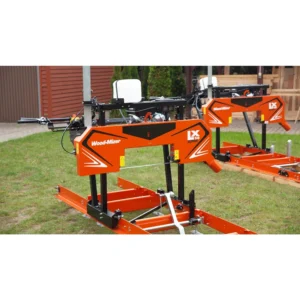

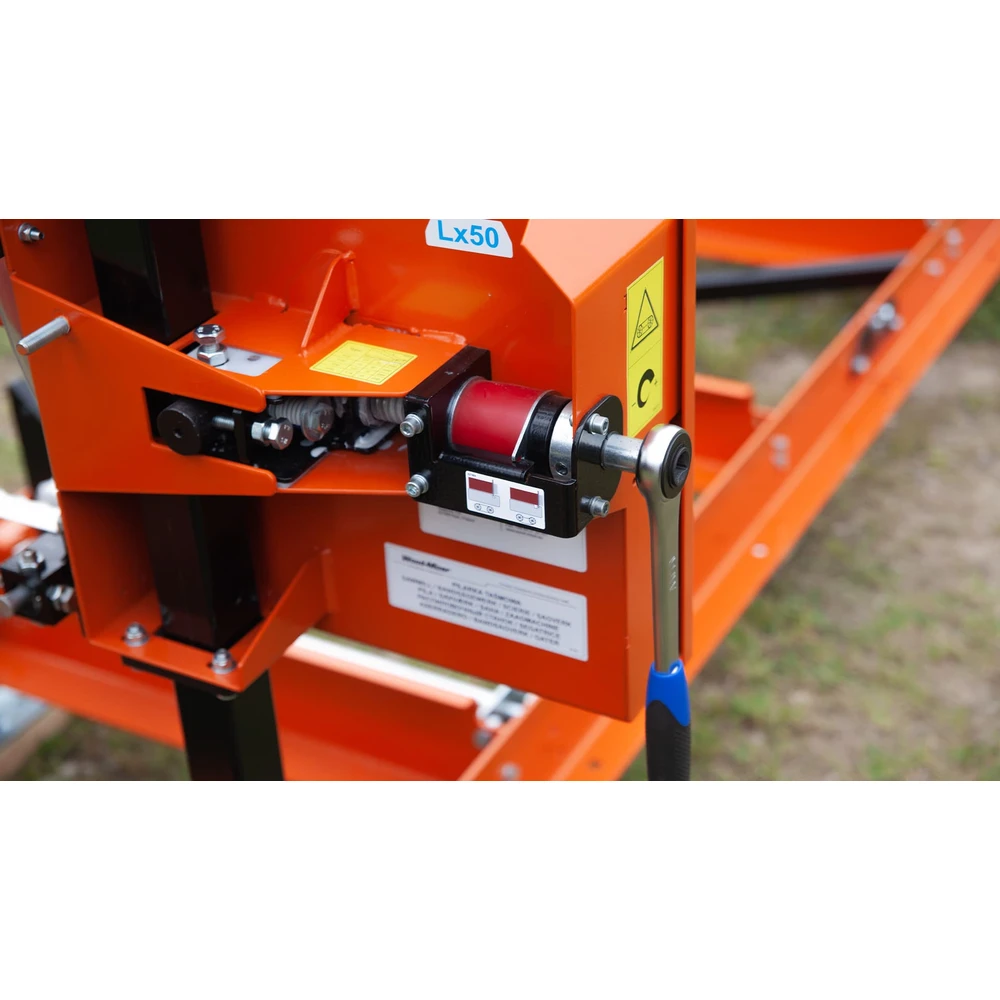

- Hand-crank sawhead raise and lower for precise positioning, with the head pushed along the bed on rollers

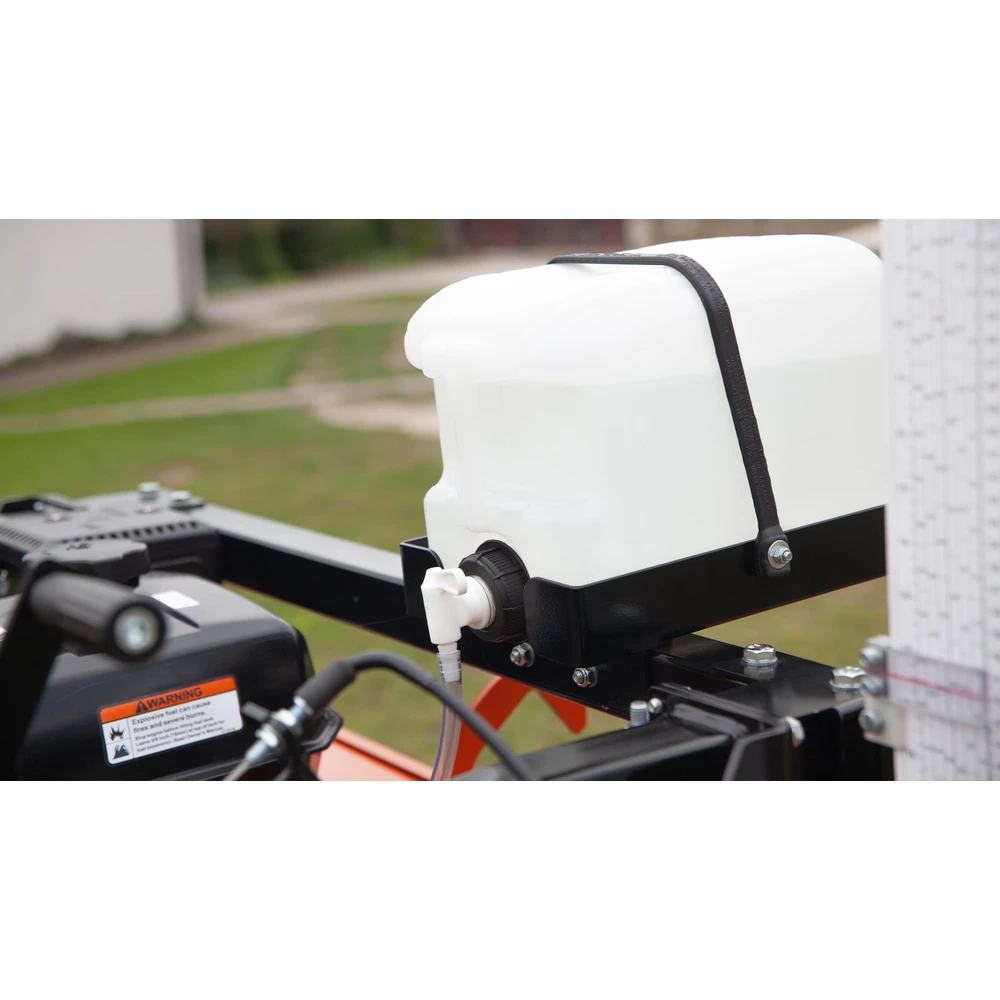

- Manual blade lubrication valve and screw blade tensioning with an indicator

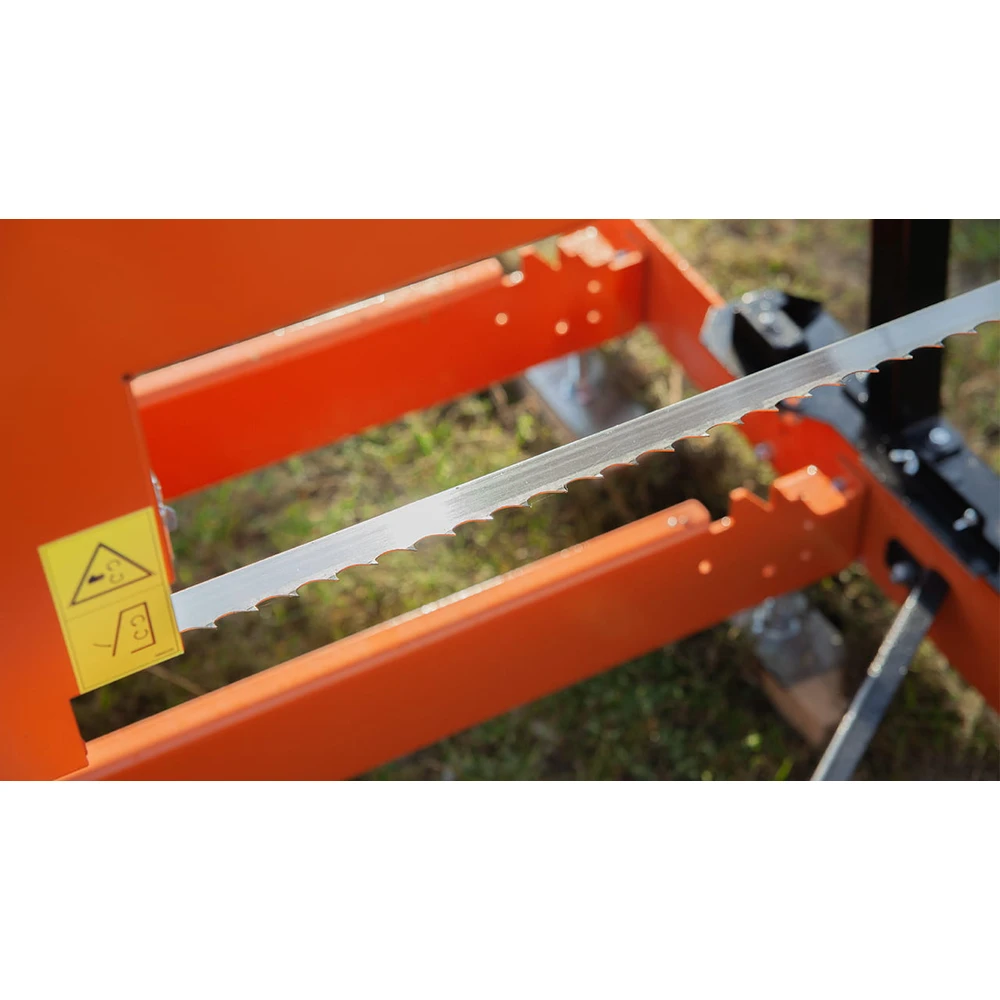

- Thin-kerf 32 mm blades for less sawdust and more timber from every log
- 101.6 mm (4″) sawdust collection port

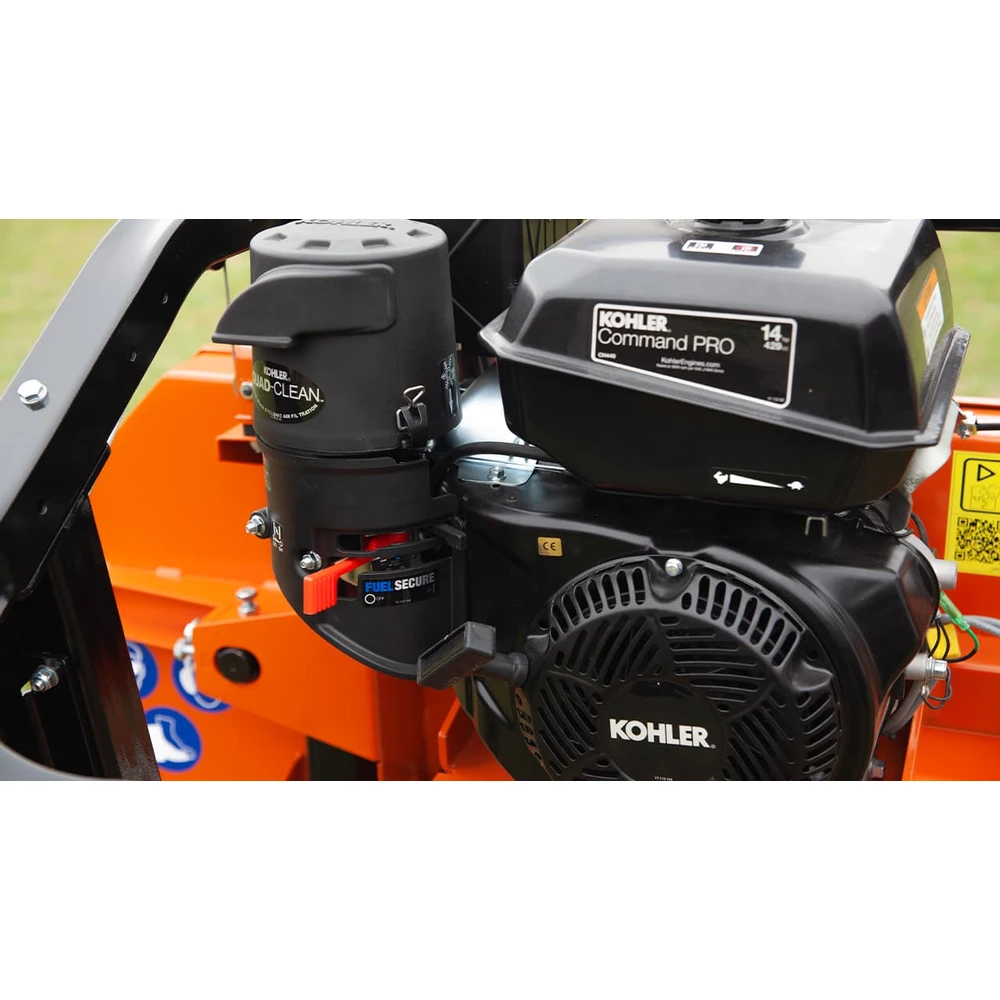

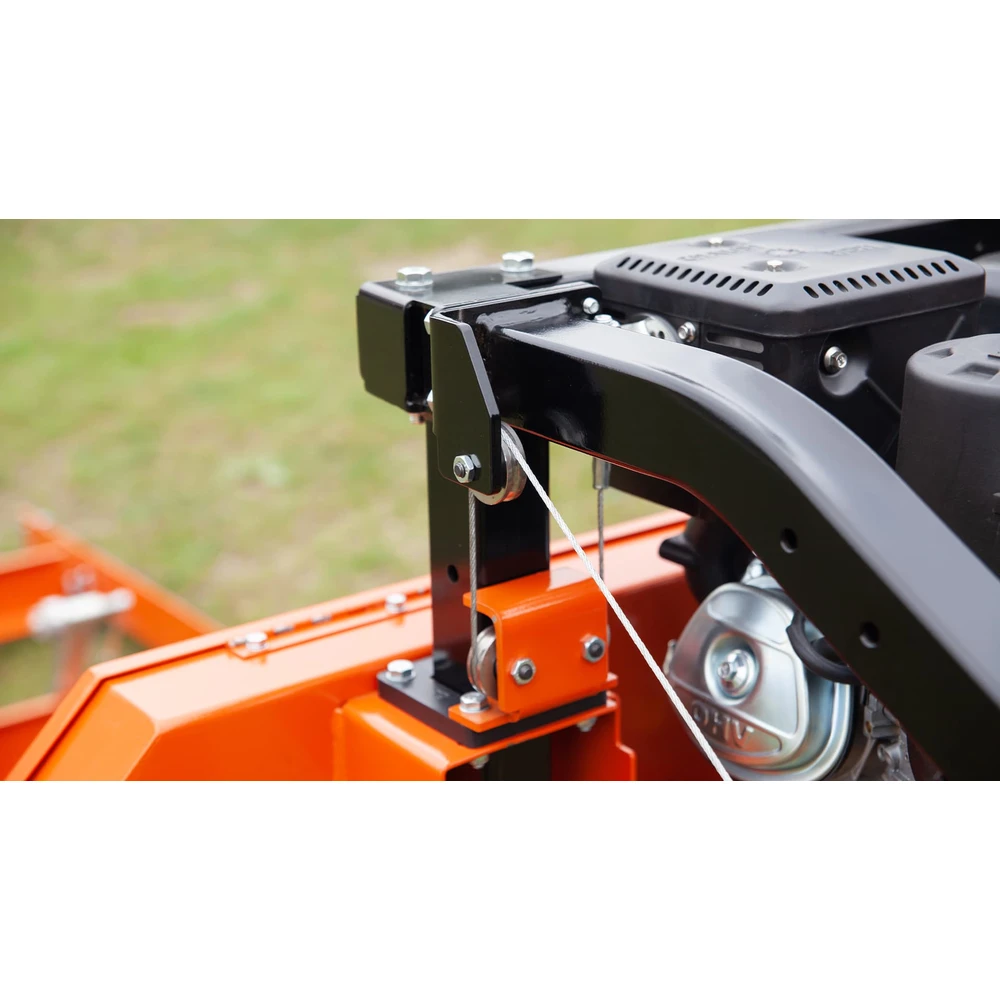

- 14 HP Kohler Command PRO petrol or 5.5 kW electric power options
Benefits
- Ideal for novice sawyers and hobbyists who want efficient, precise wood processing
- Ergonomic, intuitive operation: set the head height with the crank and move it smoothly along the bed
- Blade guide rollers keep the blade stable for precise cutting
- Easy log loading with the low bed, adjustable legs and optional log loading ramps
- Thin-kerf blades increase the yield from every log
- Expandable with bed segments, extra supports and clamps, a log taper wedge and a cant hook
- Kohler engines are renowned for their quality and reliability

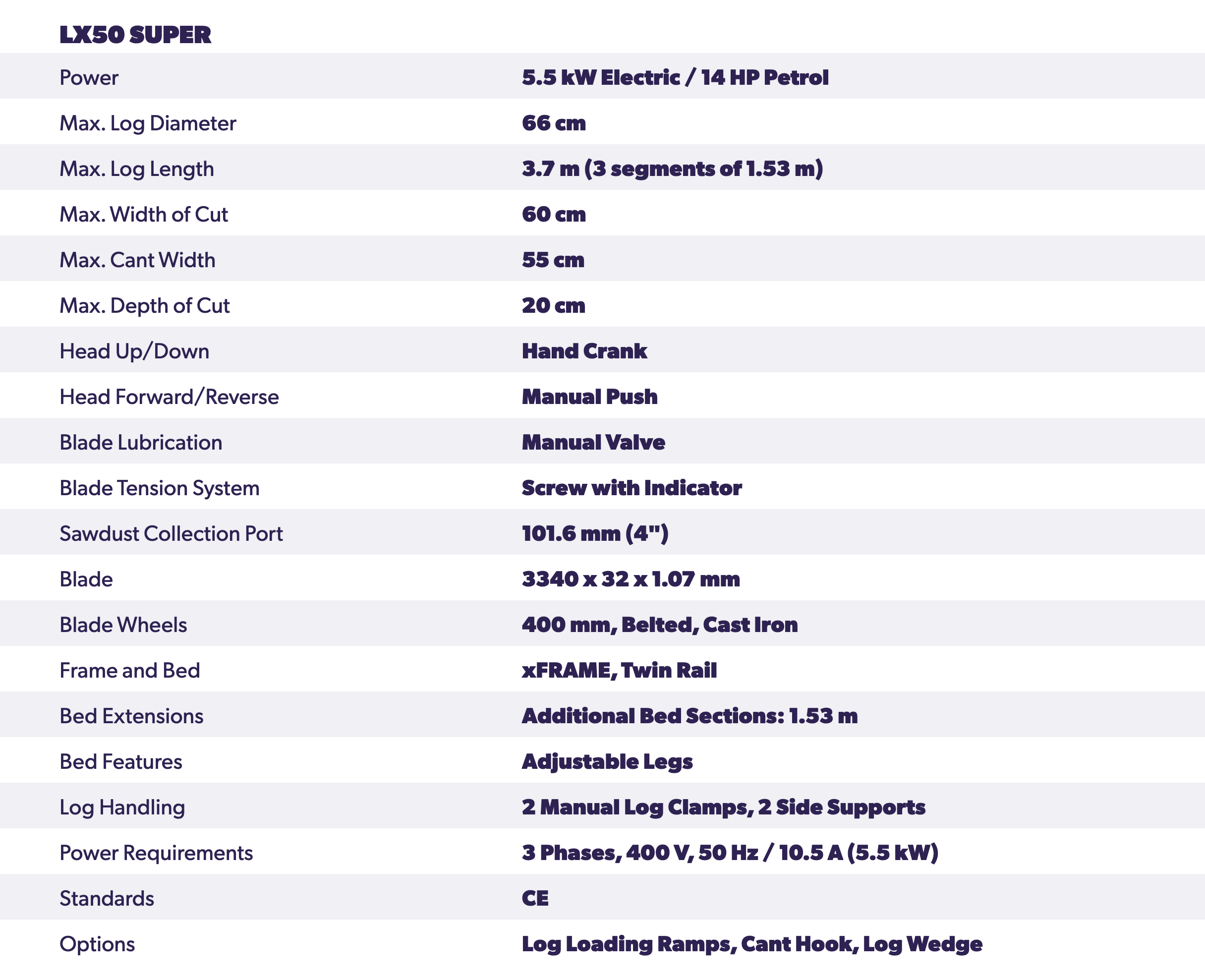

Technical Data
