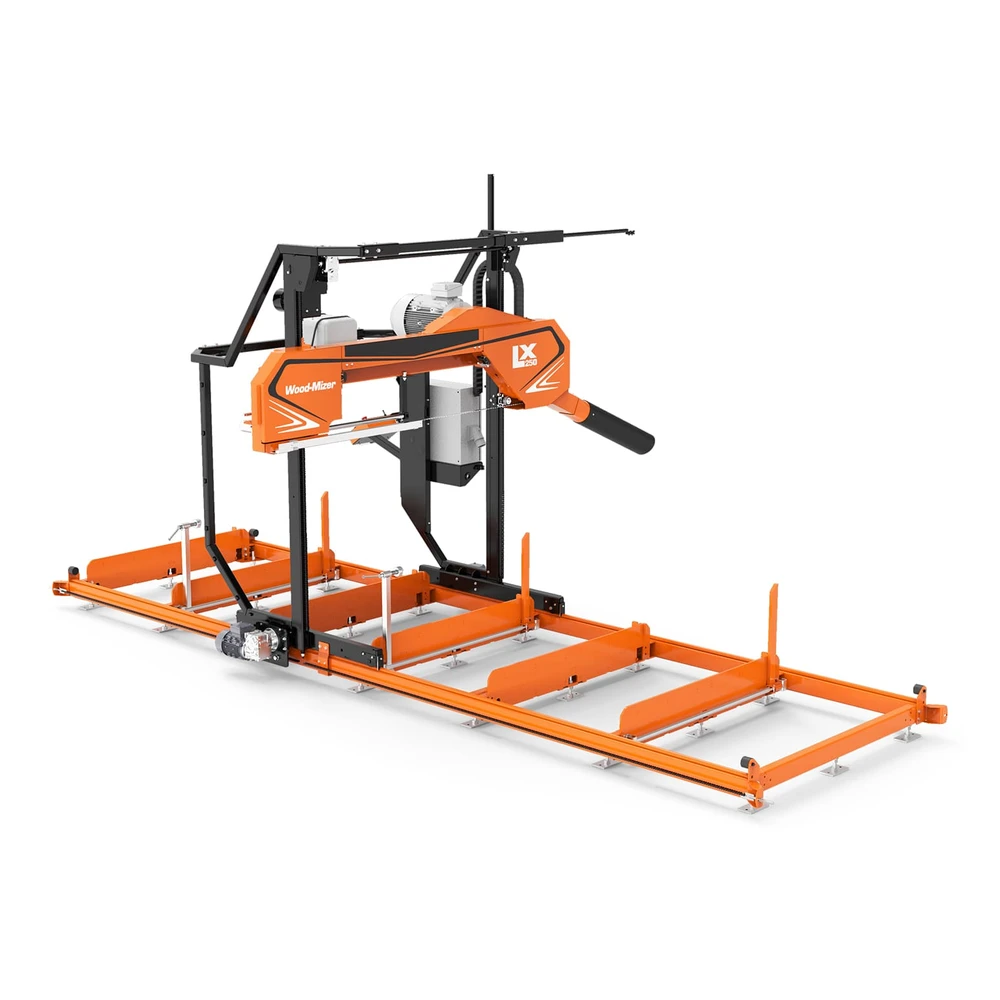

Wood-Mizer LX250 Sawmill

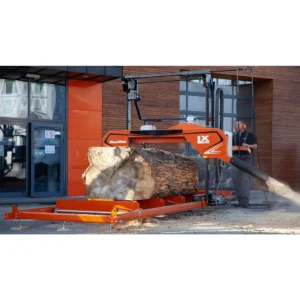

The Wood-Mizer LX250 is an extra-wide, twin-rail sawmill designed to saw massive, wide logs up to 140 cm in diameter with high cutting precision and great ease of operation. It expands the Wood-Mizer LX range and answers the wider sawing demands of sawyers and carpenters.
Its rigid LX frame carries the control panel, engine and sawhead, and the head is mounted on an xFRAME mast that moves smoothly along the twin-rail bed, driven by two 0.75 kW electric feed motors. The modular bed has three 1.85 m sections (5.55 m in total), with extensions available for longer logs, and the LX250 is powered by an 11, 15 or 18.5 kW electric motor.
Key Features
- Cuts logs up to 140 cm in diameter (138 cm throat width), with cants up to 125 cm wide and 27 cm deep
- Rigid LX frame with an xFRAME mast moving along a twin-rail bed

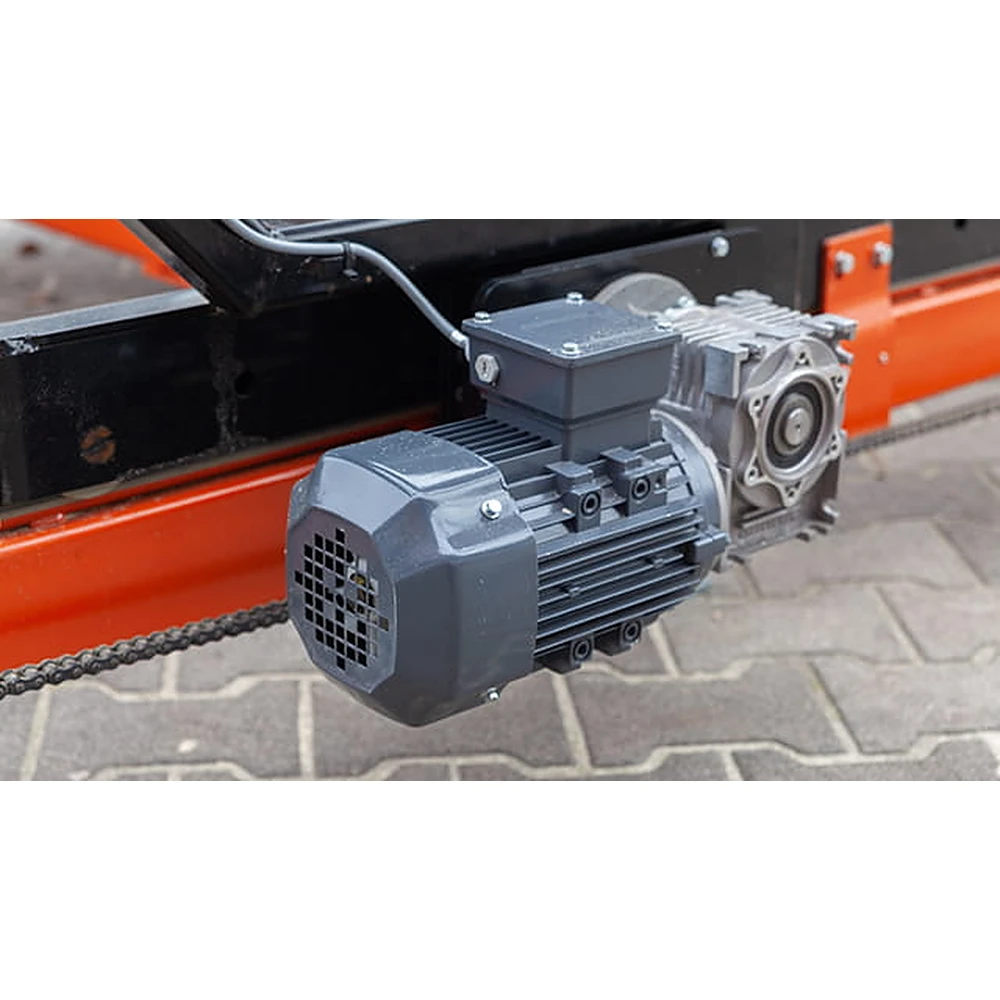

- Symmetrical power feed: a 0.75 kW electric motor on each side for stable, smooth mast movement
- Head up/down on two chains moving along the masts

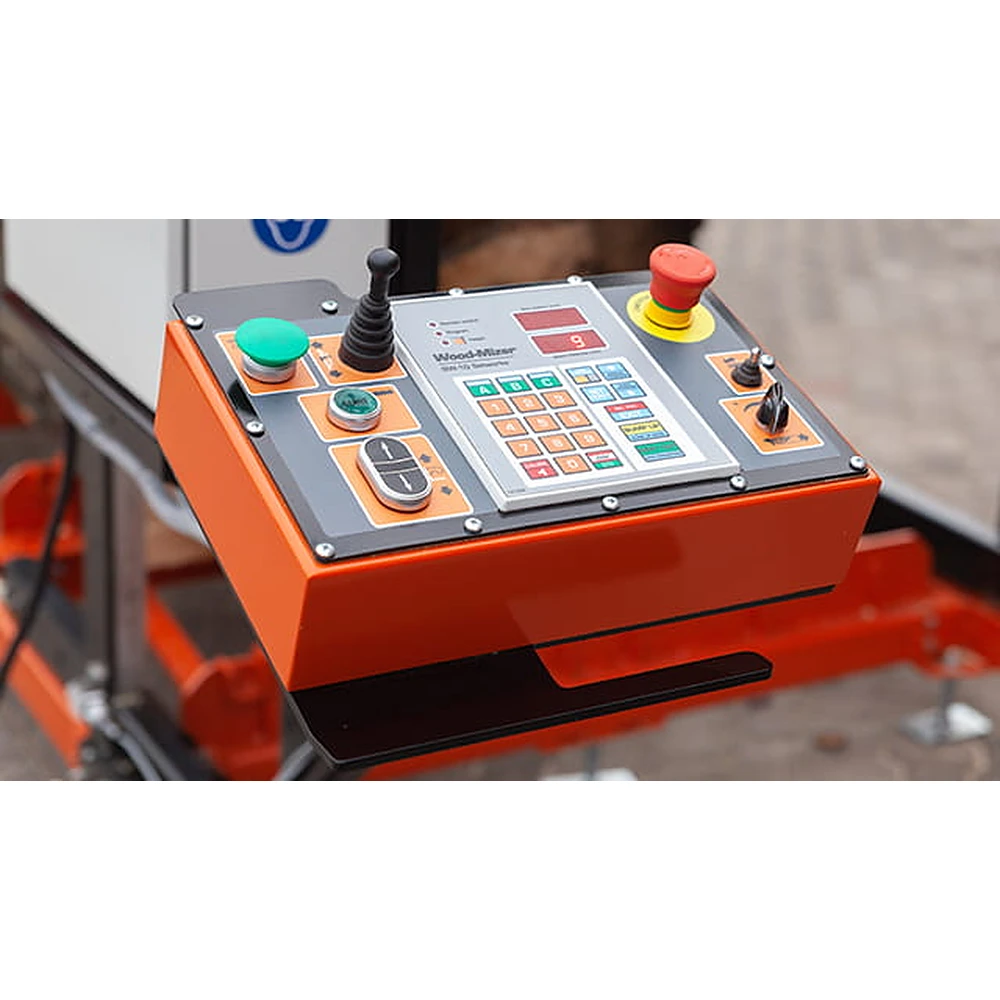

- Redesigned control panel with standard SW10 Setworks: power feed, head up/down and blade guide arm controlled in one place with safety features

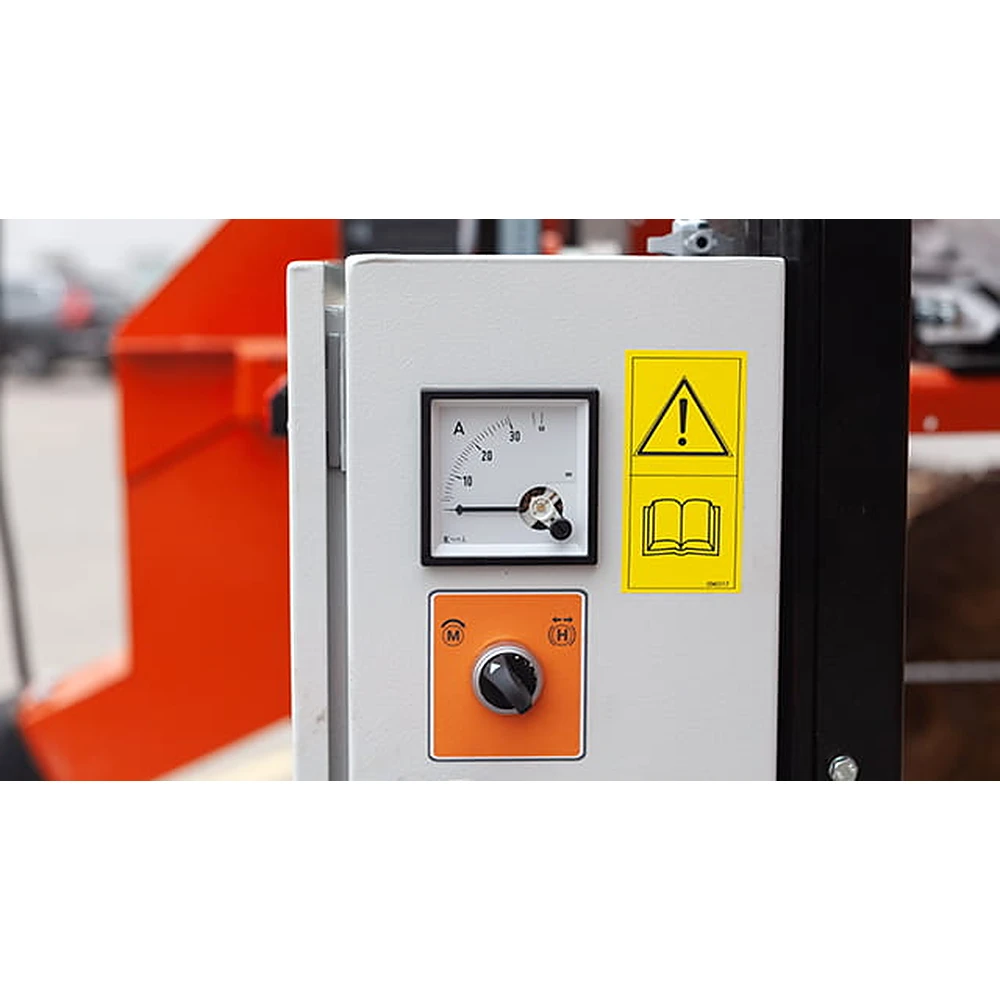

- Variable-speed feed, with an ammeter showing the main motor load so the operator can adjust cutting speed

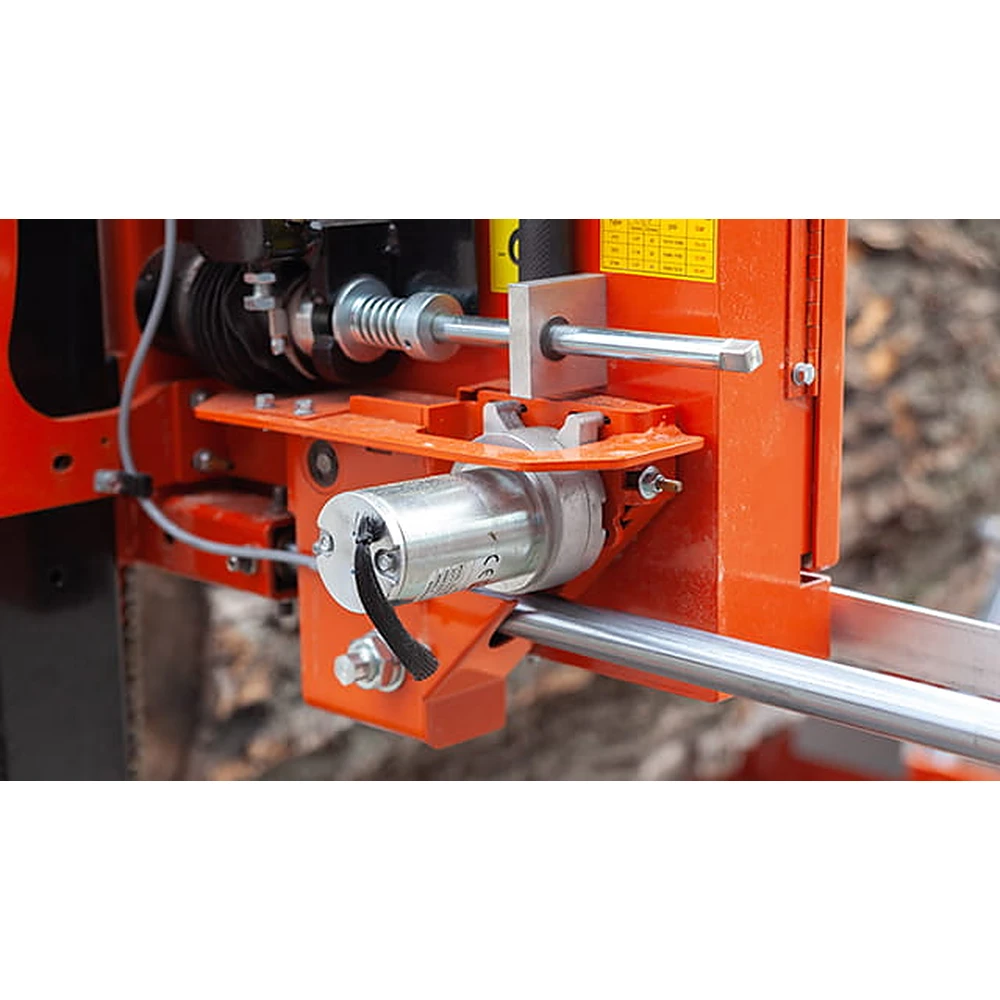

- Electric blade guide arm prevents blade vibration for more precise cutting
- Hydraulic blade tensioning handle with a gauge, and electro valve blade lubrication
- Modular bed of three 1.85 m sections (5.55 m), extendable for longer logs

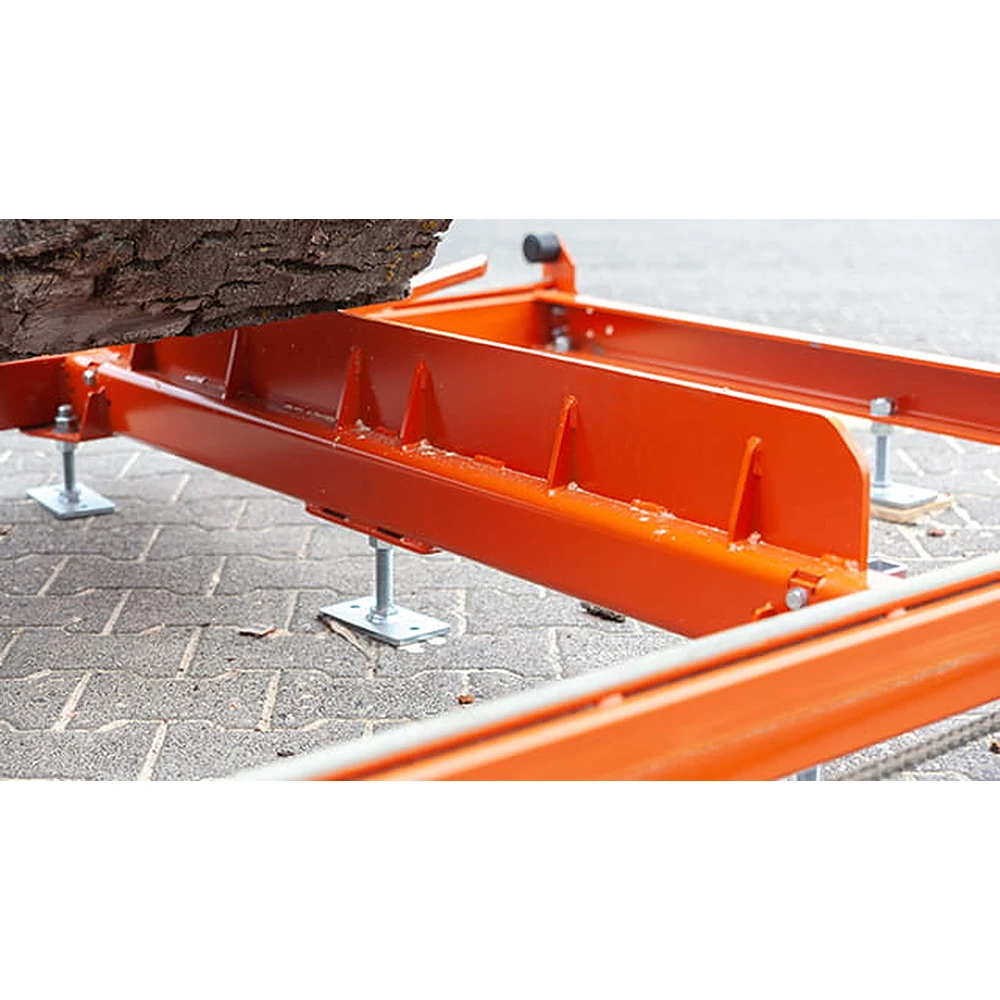

- Three side supports, two manual log clamps and a log wedge, with reinforced, raised bed sections for forklift or tractor loading

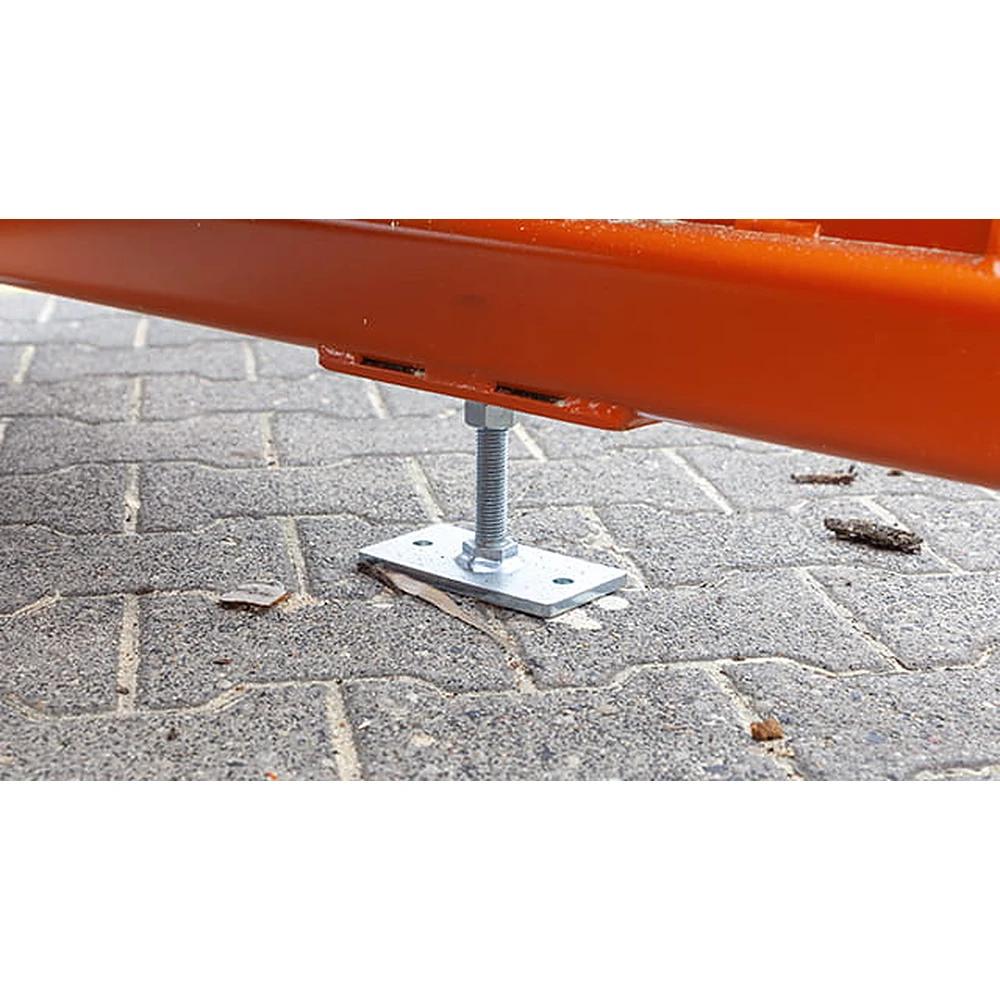

- Many adjustable legs for accurate bed levelling with logs as heavy as 4 tons
Benefits

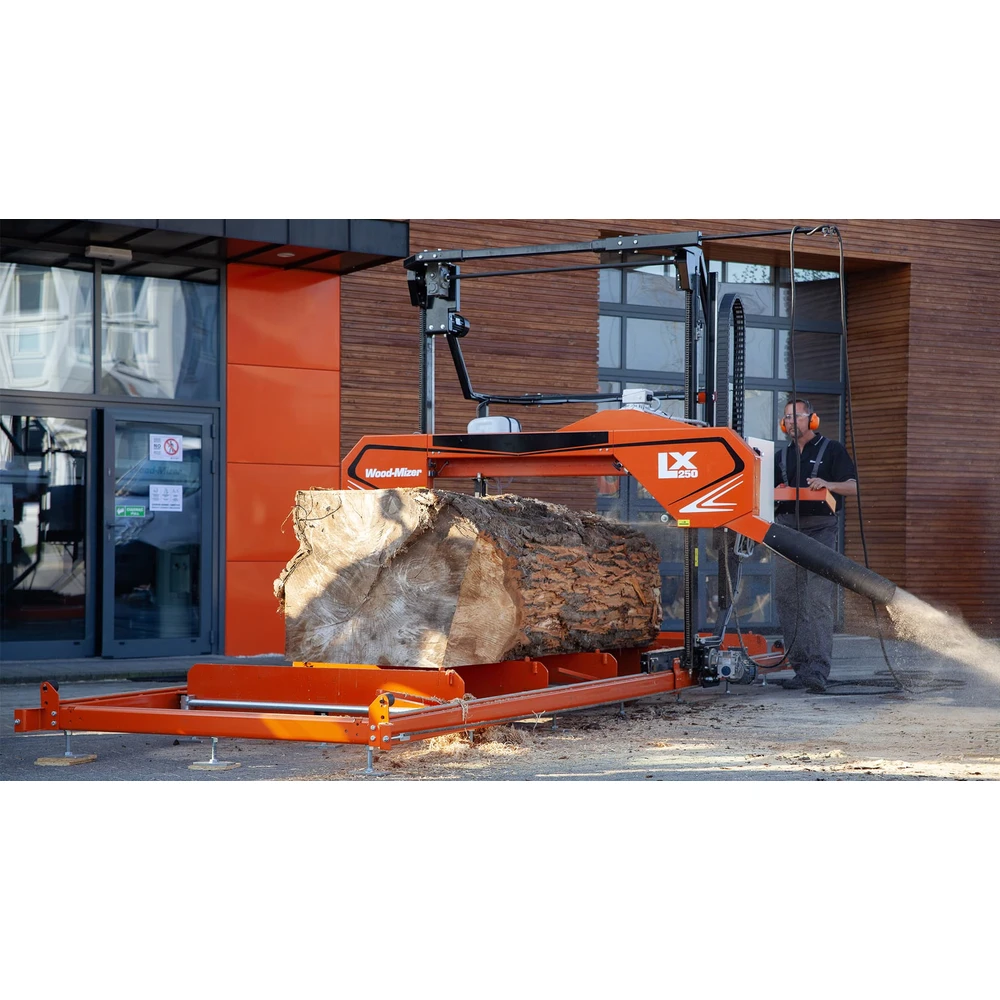

- Cuts massive, wide logs up to 140 cm in diameter
- Stable, smooth cutting from the rigid frame and symmetrical power feed
- Load heavy logs with a forklift or tractor: no need to drop or roll them onto the bed
- The ammeter helps the operator control sawing speed, blade wear and lumber quality
- Safer, more convenient operation with all controls in one operator panel
- The blade guide arm prevents blade vibration, increasing precision
- Designed for sawyers and carpenters with wide sawing demands, with long 5460 mm blades for large logs

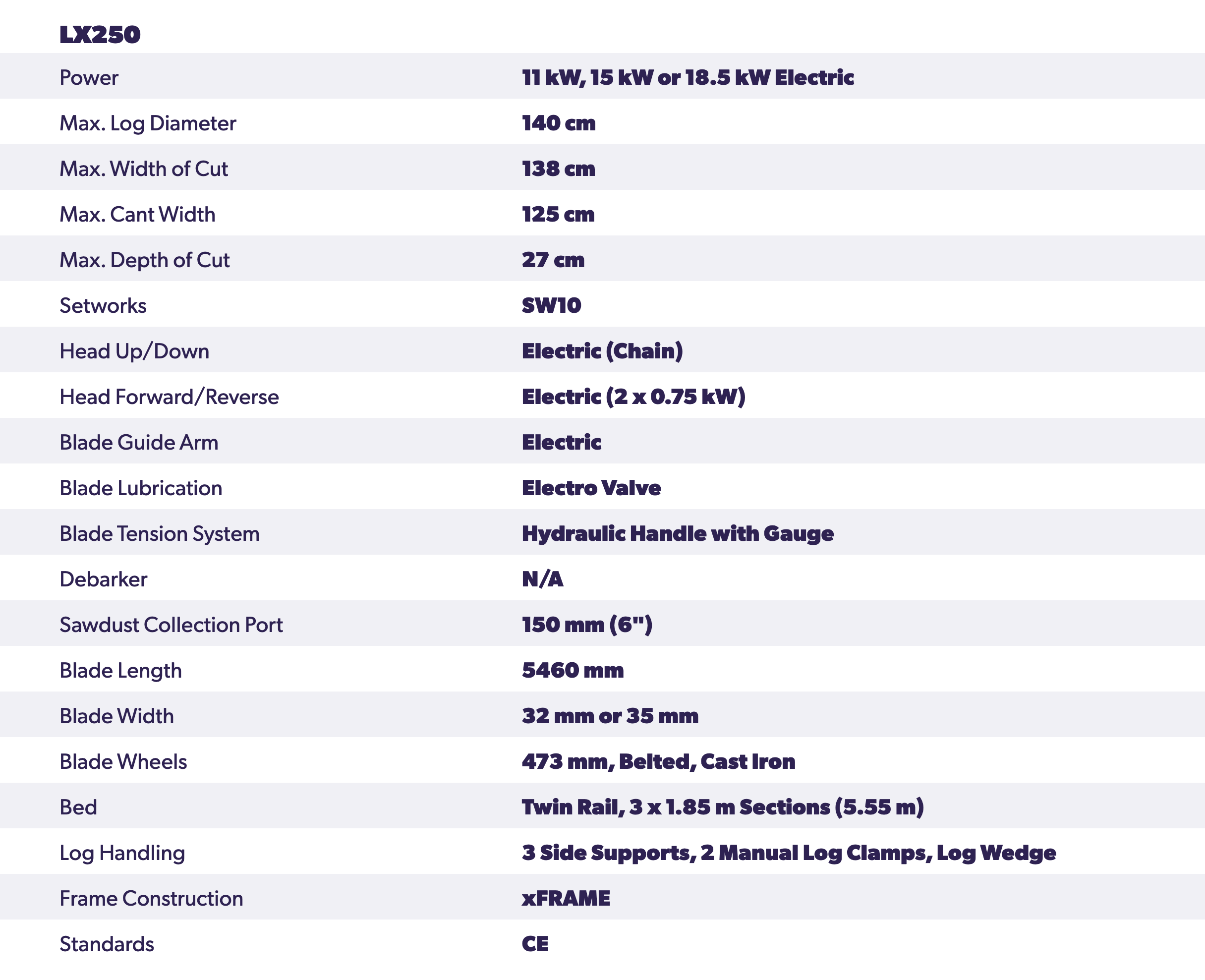

Technical Data
