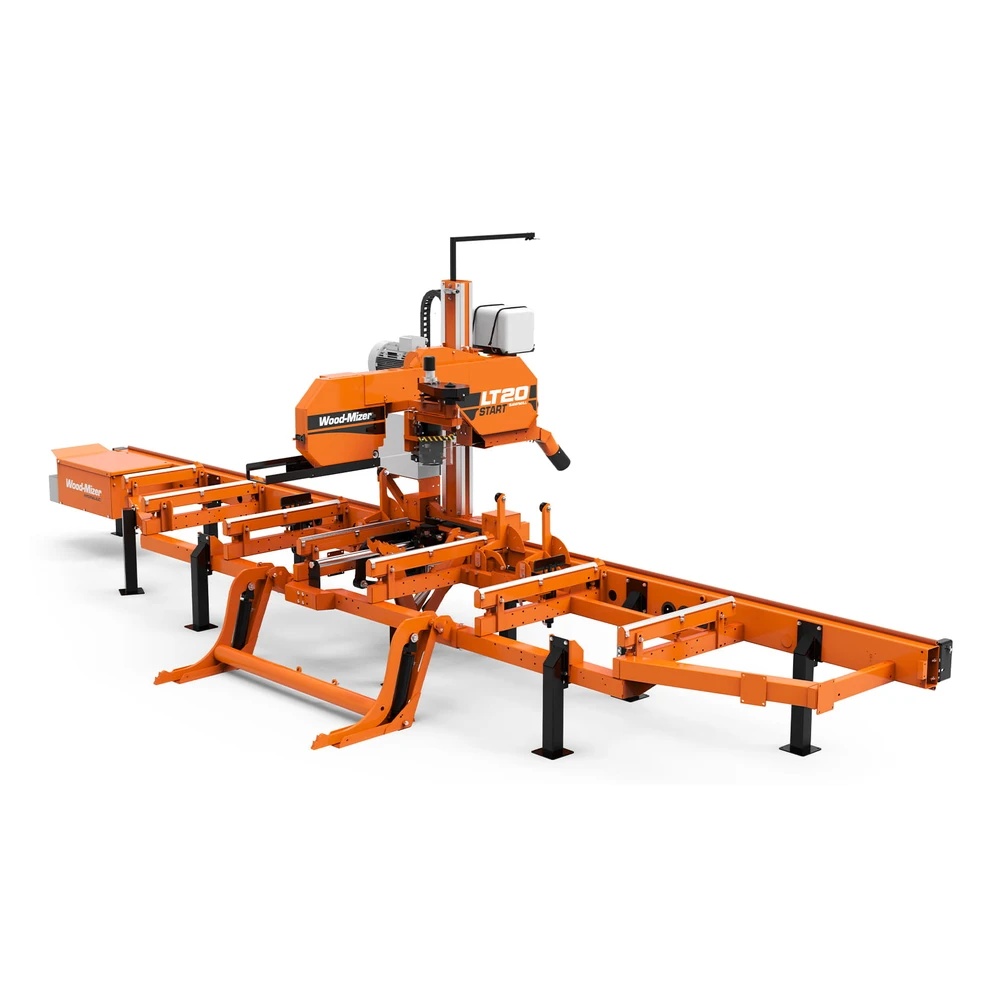

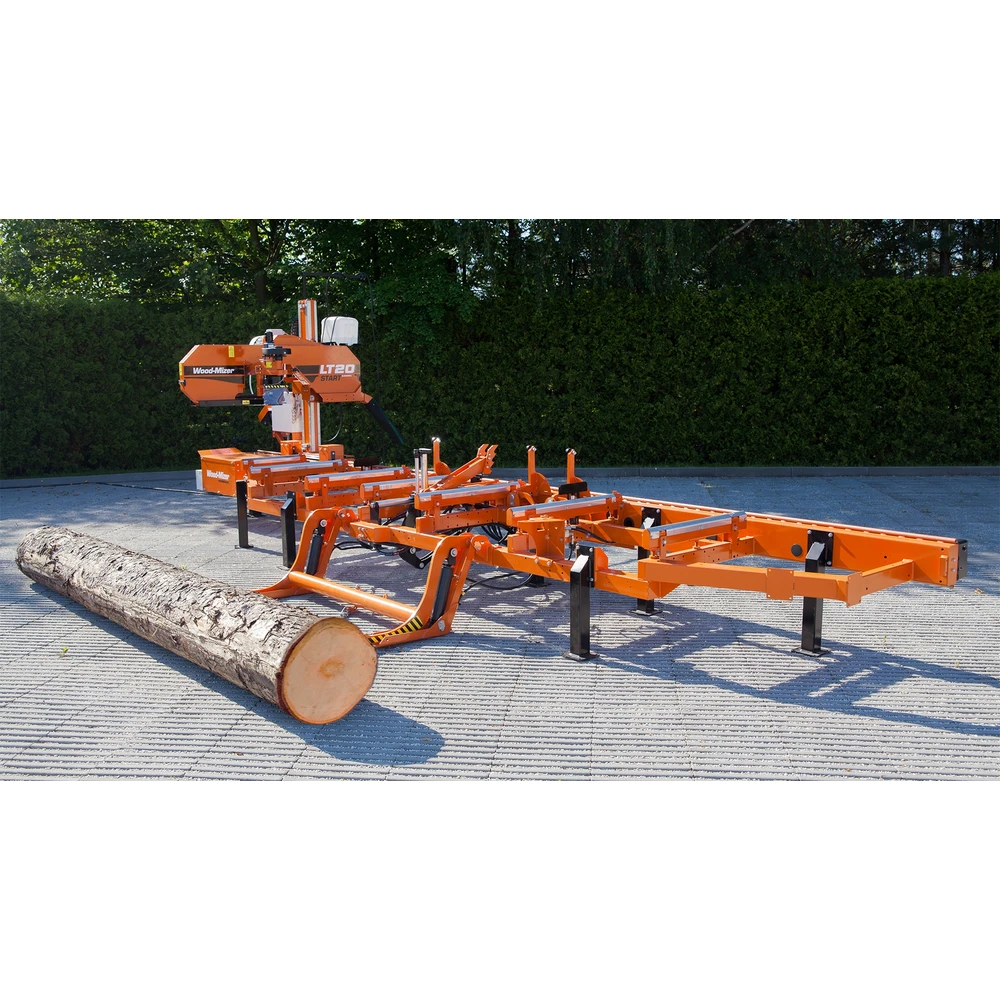

Wood-Mizer LT20 Start Sawmill
The Wood-Mizer LT20 Start is an affordable sawmill with full hydraulics, ready for action. Based on the versatile LT20 series, it keeps the full functionality and cutting parameters of the LT20 at a much more competitive price, with a complete hydraulic log handling system and a control panel with Setworks that sets the cutting height automatically.
Designed for small and medium-sized companies and individual users who want a ready-to-run machine, the LT20 Start cuts logs up to 80 cm in diameter and 6.1 m in length on an M-size bed, with bed extensions for longer logs. It is powered by a standard 11 kW electric motor, with a 3 kW hydraulic pump handling log loading, turning, clamping and positioning.
Key Features
- Cuts logs up to 80 cm in diameter and 6.1 m in length on the M-size bed, with bed extensions for longer logs
- Full hydraulic log handling powered by a 3 kW pump (11 l/min)

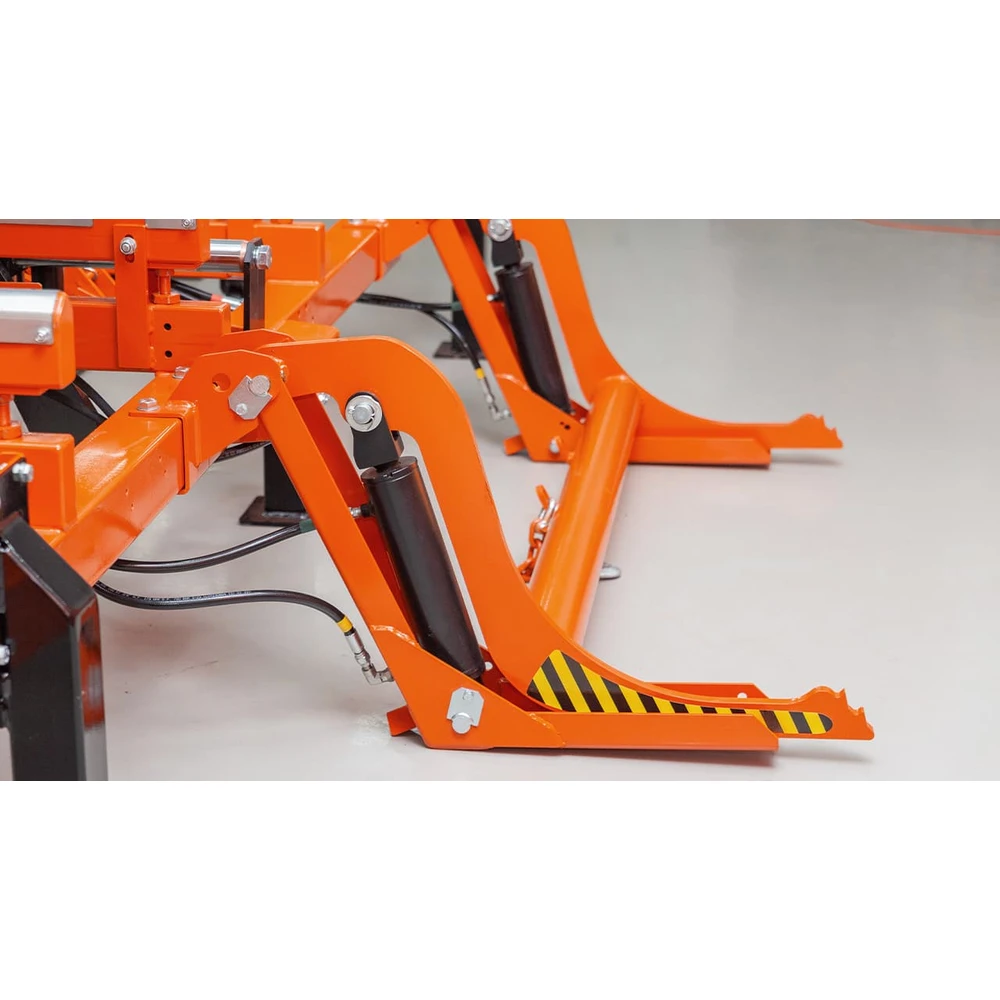

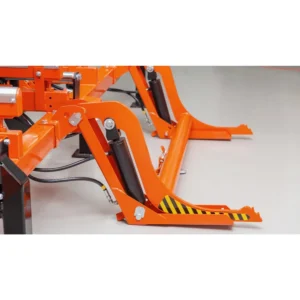

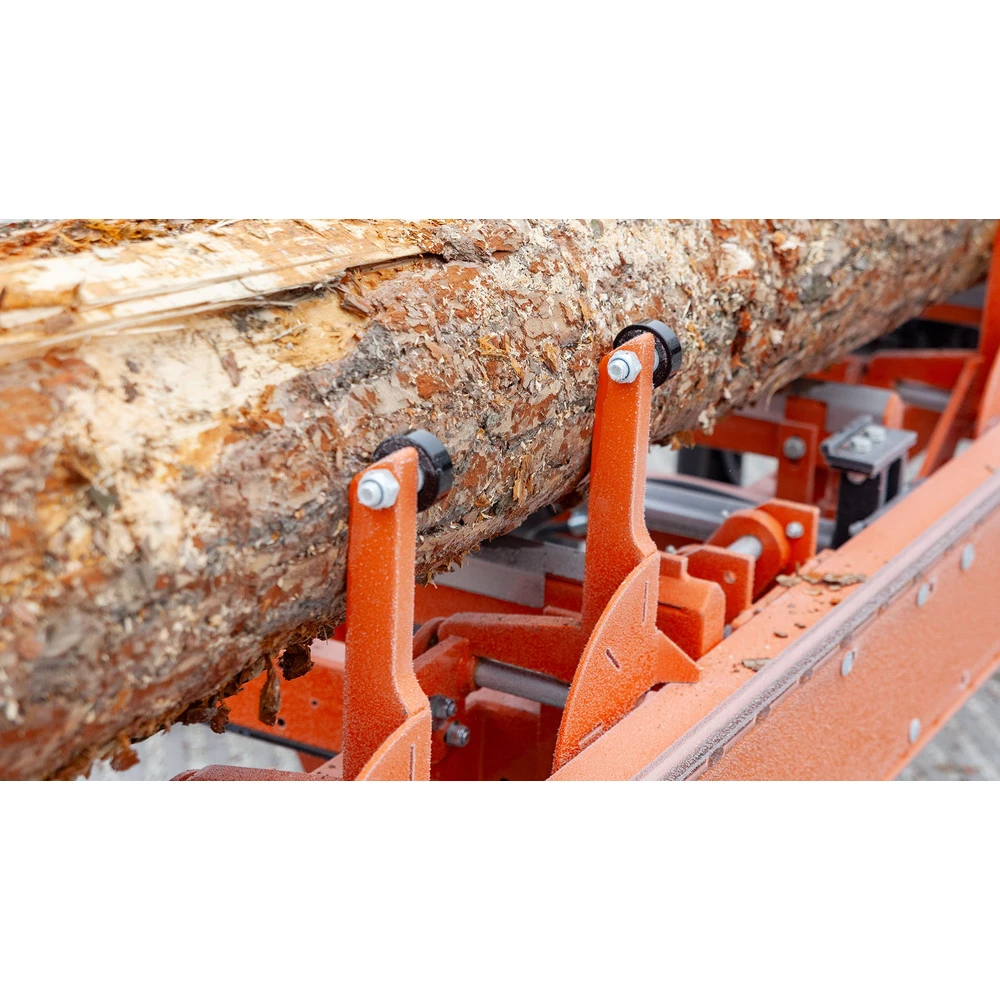

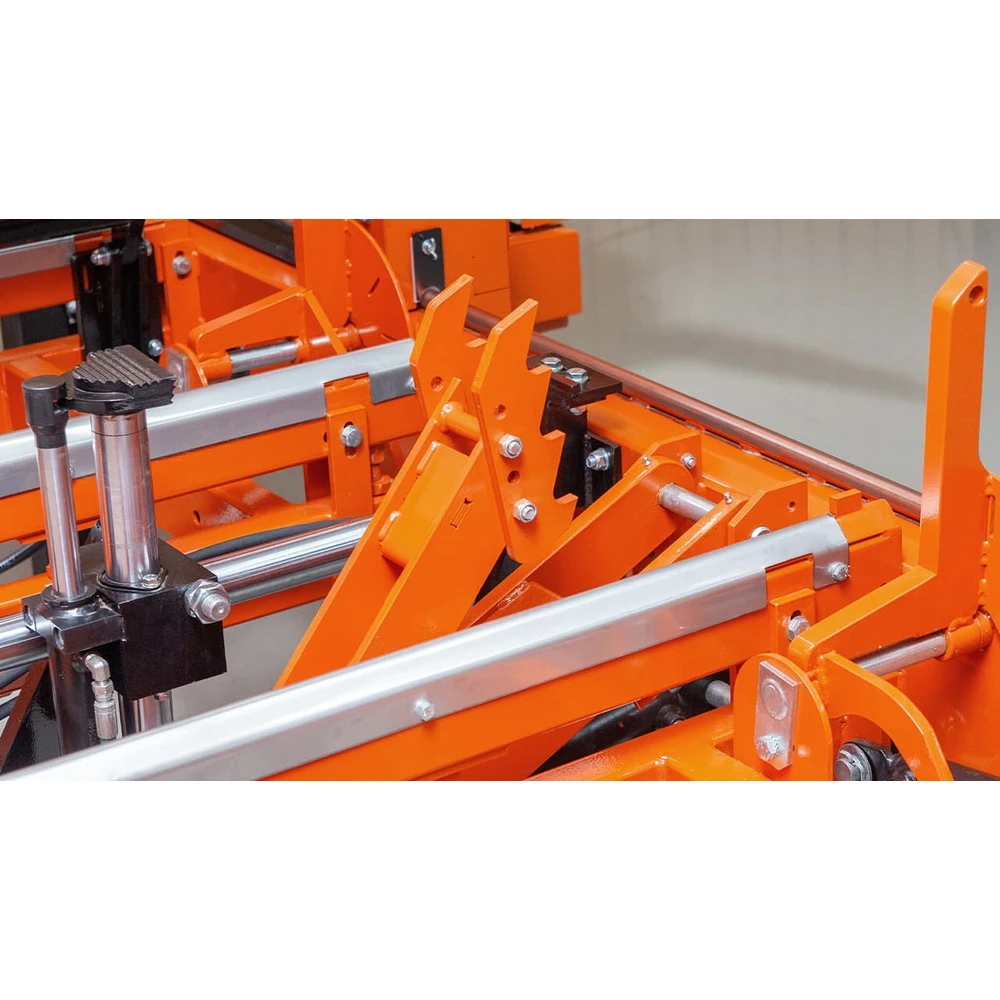

- Hydraulic package of three side supports, a central clamp, a claw log turner, two toeboards and a log loader

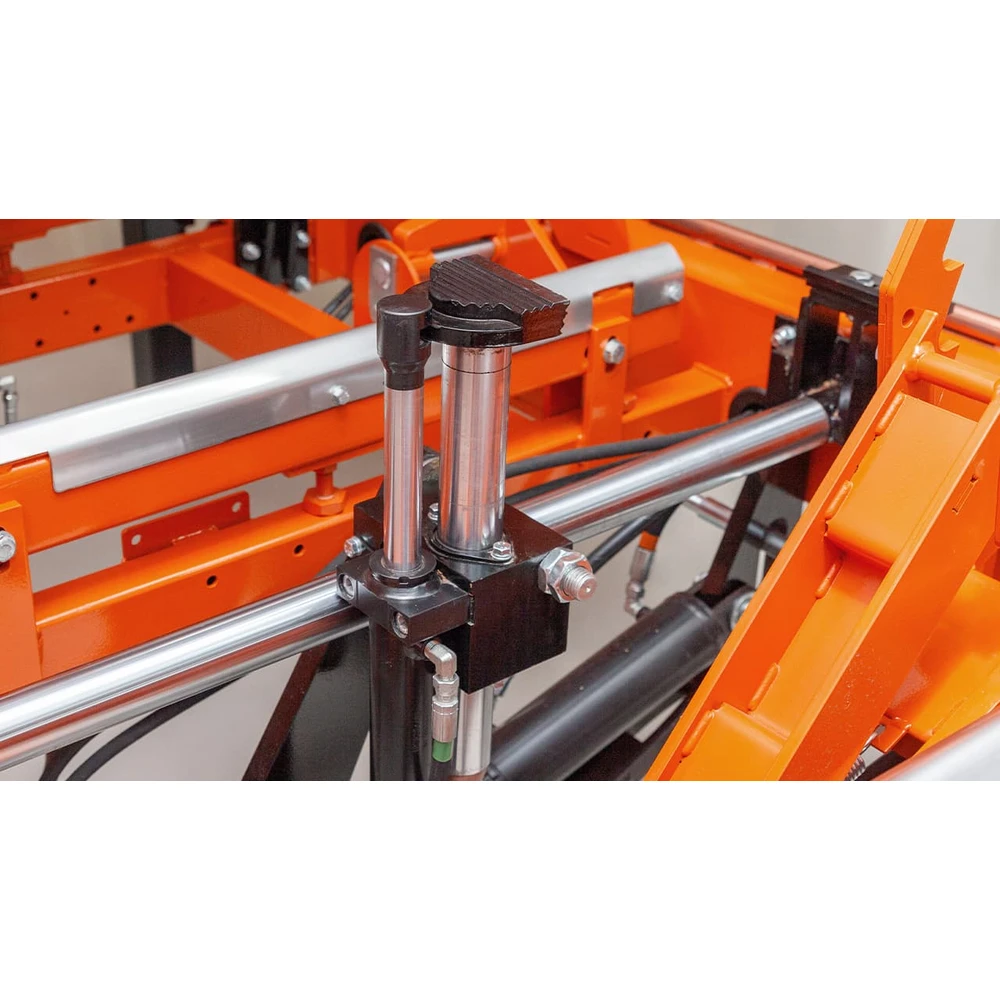

- Central clamp presses the log against the side supports, horizontally and vertically, to hold it firmly

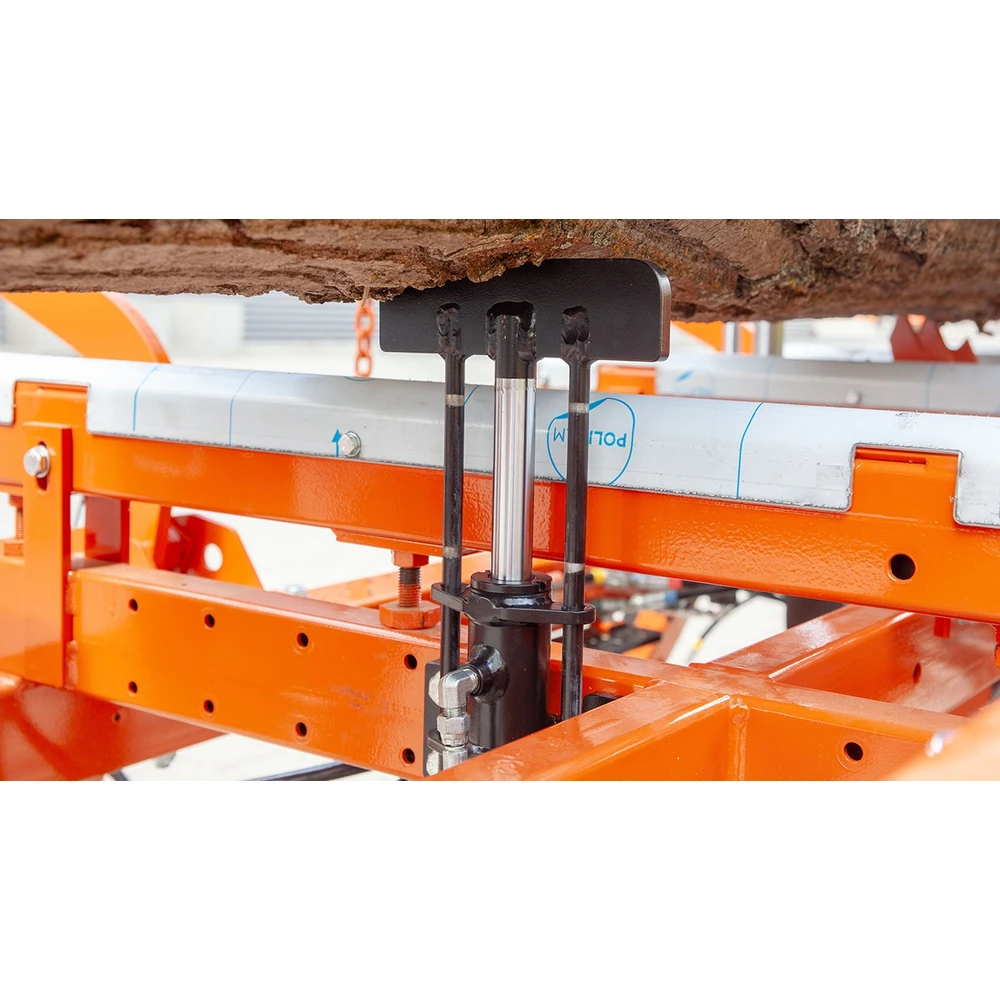

- Hydraulic toeboards lift either end of the log for parallel cutting of tapered logs

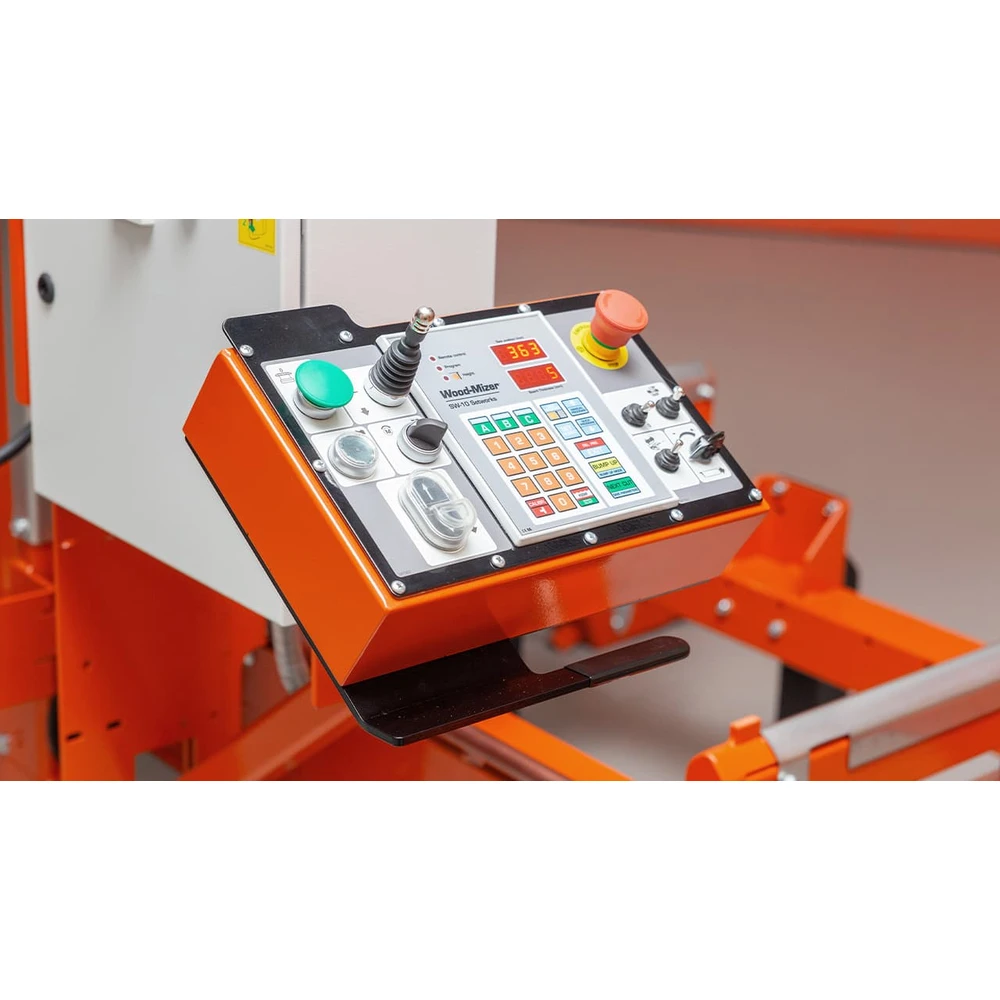

- Control panel with an ergonomic joystick for sawhead forward and reverse
- SW10 Setworks as standard sets the cutting height automatically
- Electric blade guide arm, electro valve blade lubrication and screw blade tensioning with a gauge
- Roof-shaped bed rails stop debris building up under the log, with optional stainless-steel covers
- Standard 11 kW electric motor, 65 cm width of cut and cants up to 58 cm wide and 25 cm deep
- Optional debarker for dirty logs, extending blade life
Benefits
- Full sawmilling functionality at a budget-friendly price
- Quick log loading, rotating and positioning without heavy manual effort
- No need to calculate and set the cutting height by hand, thanks to Setworks
- Logs held securely for stable, accurate cutting, including tapered and irregular logs
- A good fit for small and medium-sized companies and individual users who want a ready-to-run machine
- A stationary sawmill designed to be installed under a roof and bolted to the floor, with an LT20 Start Mobile version available with a certified trailer package (1800 kg GVWR, braked axle, hitch with support wheel, outriggers, lighting and safety fencing)
- More motor and hydraulic options are available with the larger LT20 Super

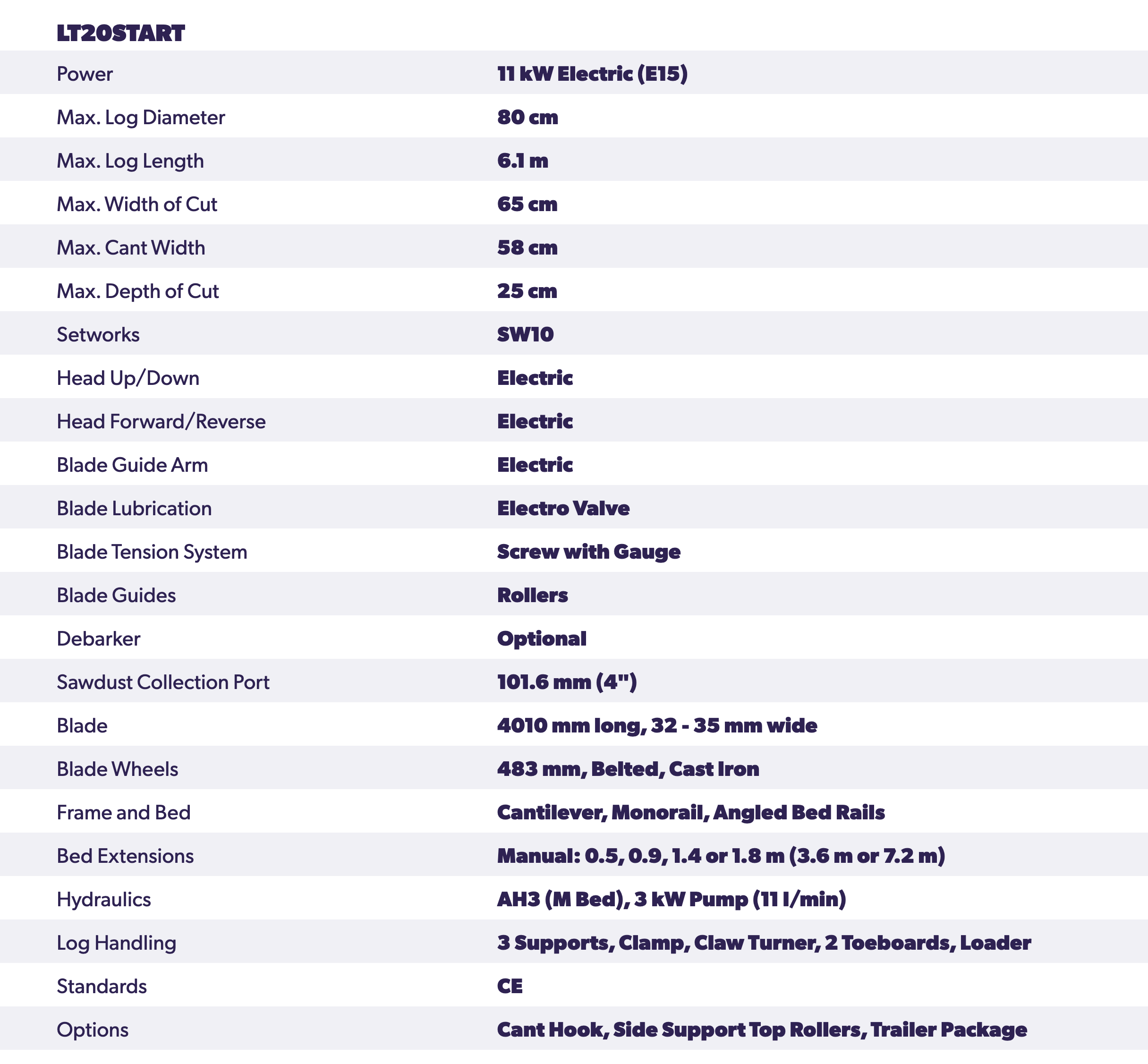

Technical Data
