Wood-Mizer LT15 Start

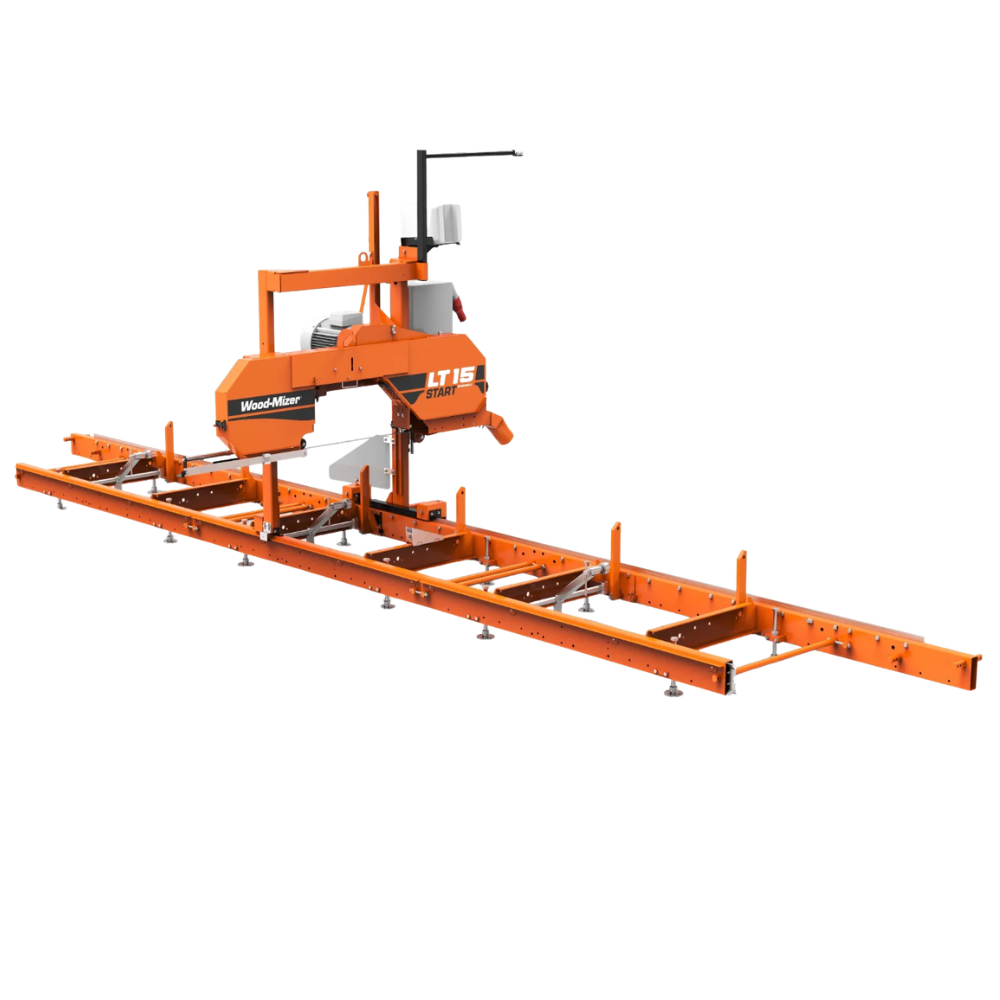

The Wood-Mizer LT15START is a compact and practical entry-level sawmill designed for small-scale timber processing, farm use, estate management, and hobby or start-up sawmilling operations. Built around Wood-Mizer’s proven thin-kerf cutting technology, the LT15START delivers efficient timber conversion while keeping power consumption and material waste to a minimum.
Capable of handling logs up to 700 mm in diameter and 5.4 m in length in its standard configuration, the LT15START combines straightforward manual operation with reliable cutting performance. The machine features a twin-rail bed construction, manual feed system, adjustable blade guide arm, and cast iron belted blade wheels for stable and accurate cutting across a wide range of timber types. Electric and petrol engine options are available to suit different workshop and site requirements.
Key Features
- Thin-kerf blade technology for reduced timber waste and efficient cutting
- Handles logs up to 700 mm diameter
- Standard cutting length capacity of 5.4 m (4.8m for mobile)
- Twin-rail bed construction for stability during operation
- Manual push feed system for simple and controlled cutting
- Adjustable blade guide arm for improved blade support
- Cast iron belted blade wheels
- Available with electric or petrol engine options
- Modular bed extensions available for longer log processing
- Compatible with optional log loading ramps and MP100 planer/moulder attachment
- Standard S3 bed of three 1.95 m segments, extendable with 1.95 m or 2.7 m sections
- Three log clamps and six adjustable side supports hold the log firmly in place
- Maximum width of cut of 64 cm, with cants up to 59 cm wide and 27 cm deep
- Electric motors of 5.5 kW or 7.5 kW (11 kW for stationary machines) or a 14 HP Kohler Command PRO petrol engine
- Optional power up/down for the sawhead on electric models
- Water tank lubrication to the blade and screw blade tension with a gauge
- 101.6 mm (4″) sawdust collection port
Benefits
- Compact footprint suitable for smaller workshops and yards
- Simple operating system ideal for first-time sawmill users
- Low power consumption thanks to thin-kerf blade design
- Flexible setup options depending on production requirements
- Easy to transport and assemble
- Reliable cutting performance across hardwoods and softwoods
- Expandable design allows the machine to grow with production needs
- Thin-kerf technology lets smaller, cost-efficient motors deliver strong cutting performance on all wood types

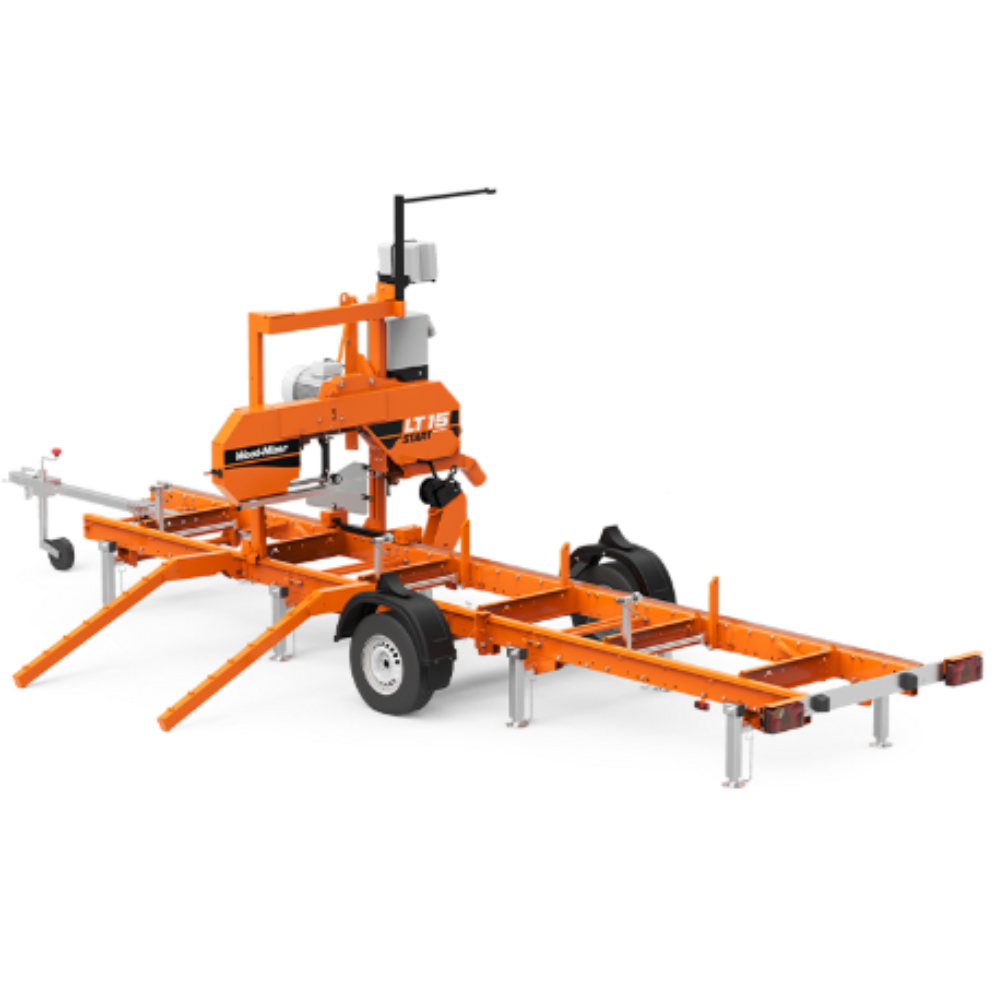

- Mobile version available on a 750 kg, 7.2 m trailer with axle, wheels, hitch, 8 adjustable legs, lighting and fences
- The mobile version has reinforced bed connections, internal wiring and a transport lock pin on the sawhead, with an optional winch and loading ramps

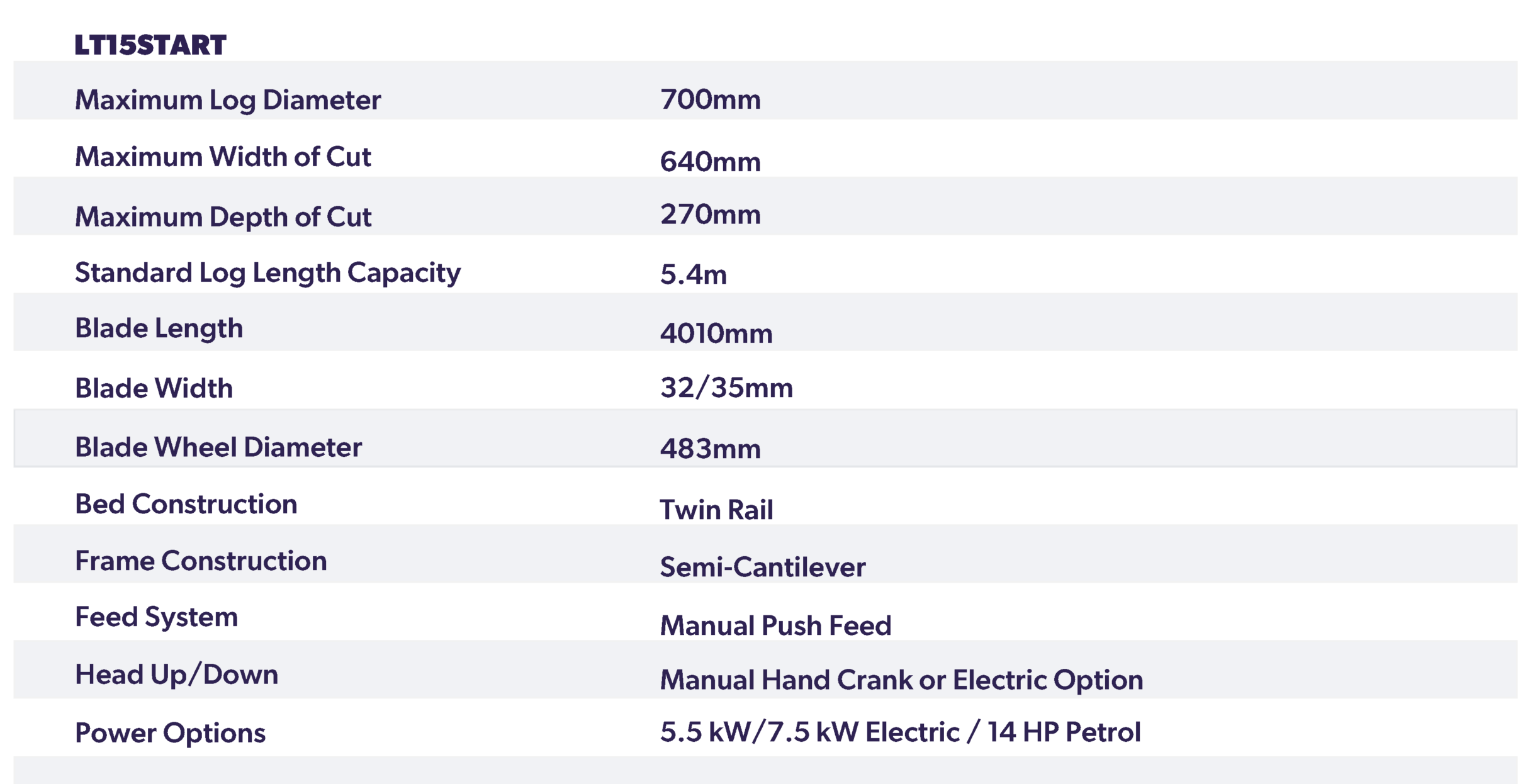

Technical Data
