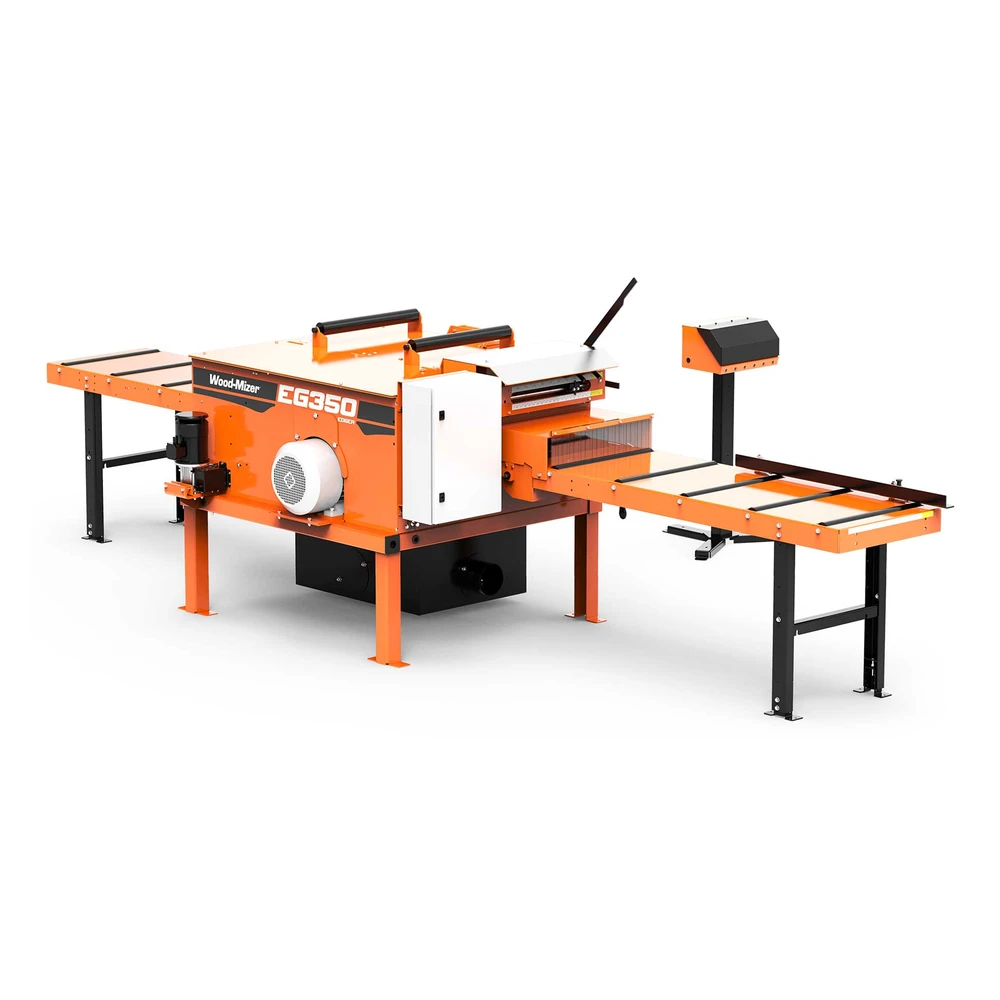

Wood-Mizer EG350 Multirip Board Edger
The Wood-Mizer EG350 is a powerful dual-function board edger and multirip saw that combines both operations to boost sawmill productivity and get the most yield from every log. Built on proven Wood-Mizer designs, it handles thicker, larger material than smaller edgers.
It processes cants up to 100 mm thick and 550 mm wide, with a maximum cutting width of 420 mm between blades. The EG350 uses 400 mm circular blades, a double-roller infeed for different material thicknesses, four powered feed rollers and a remote operator panel with automatic Setworks, and is powered by an 18.5 kW or 22 kW electric motor.
Key Features

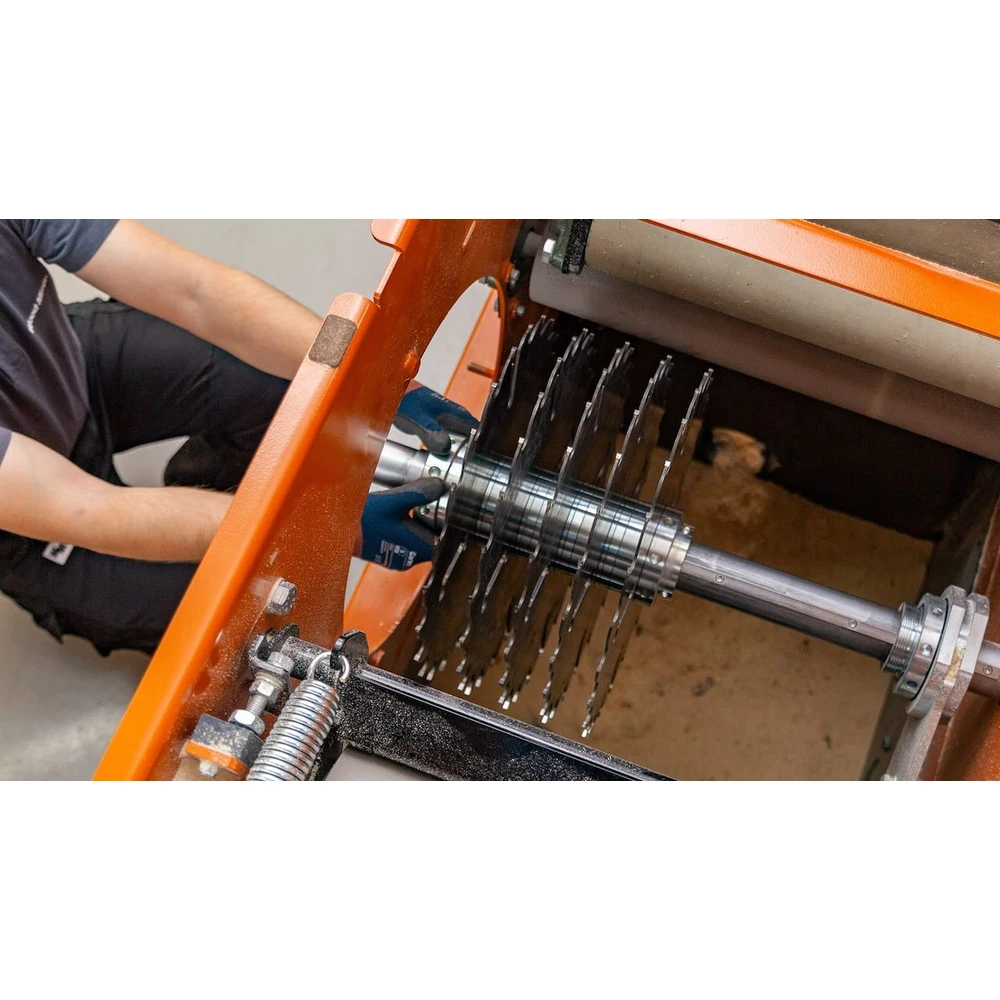

- Dual function: edging mode with two 400 mm blades (one fixed, one movable) or multirip mode with up to five blades
- Handles cants up to 100 mm thick and 550 mm wide, with a 420 mm maximum cutting width between blades
- Blade spacers in a range of widths, customised on request

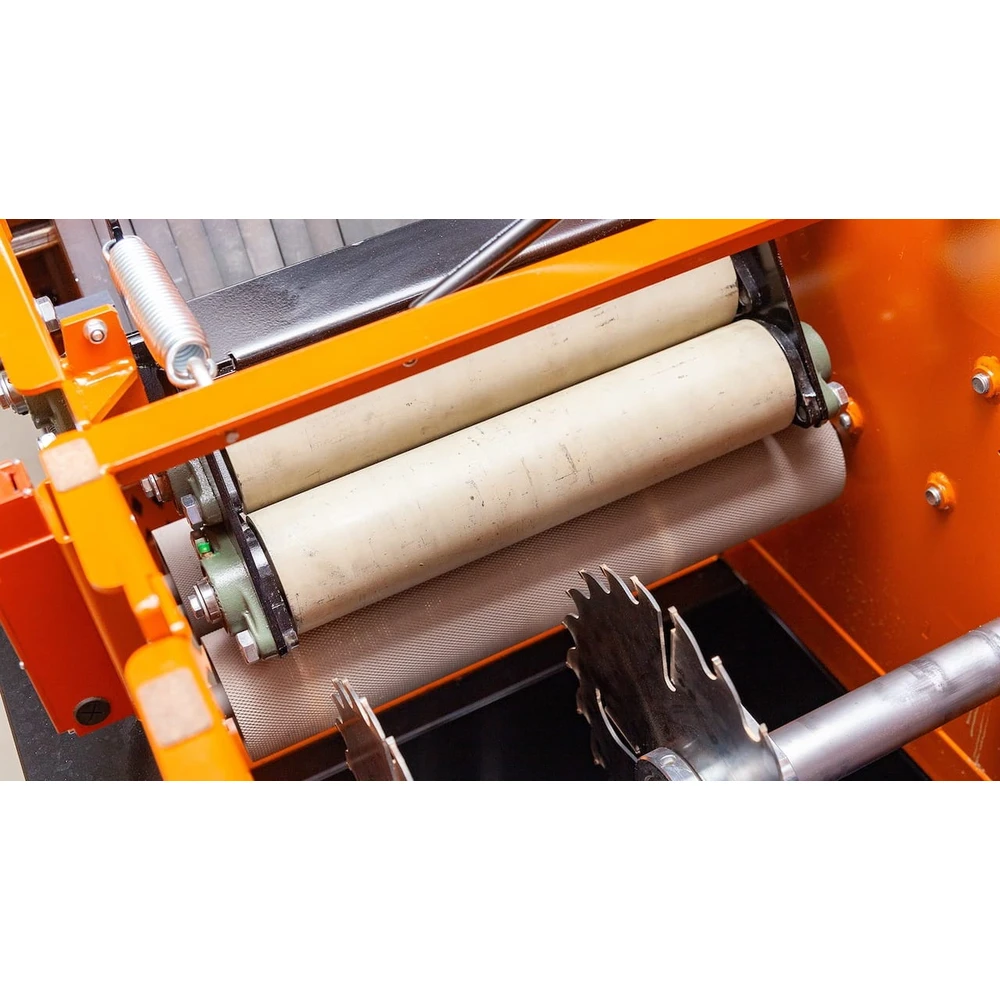

- Double-roller infeed: the lower roller handles material up to 65 mm, the upper roller 65 to 100 mm, with adjustable bumpers to preset the roller height
- 200 mm outfeed roller on a pivoted bracket for easier cant feeding
- Four powered feed rollers press the material down for stable cutting

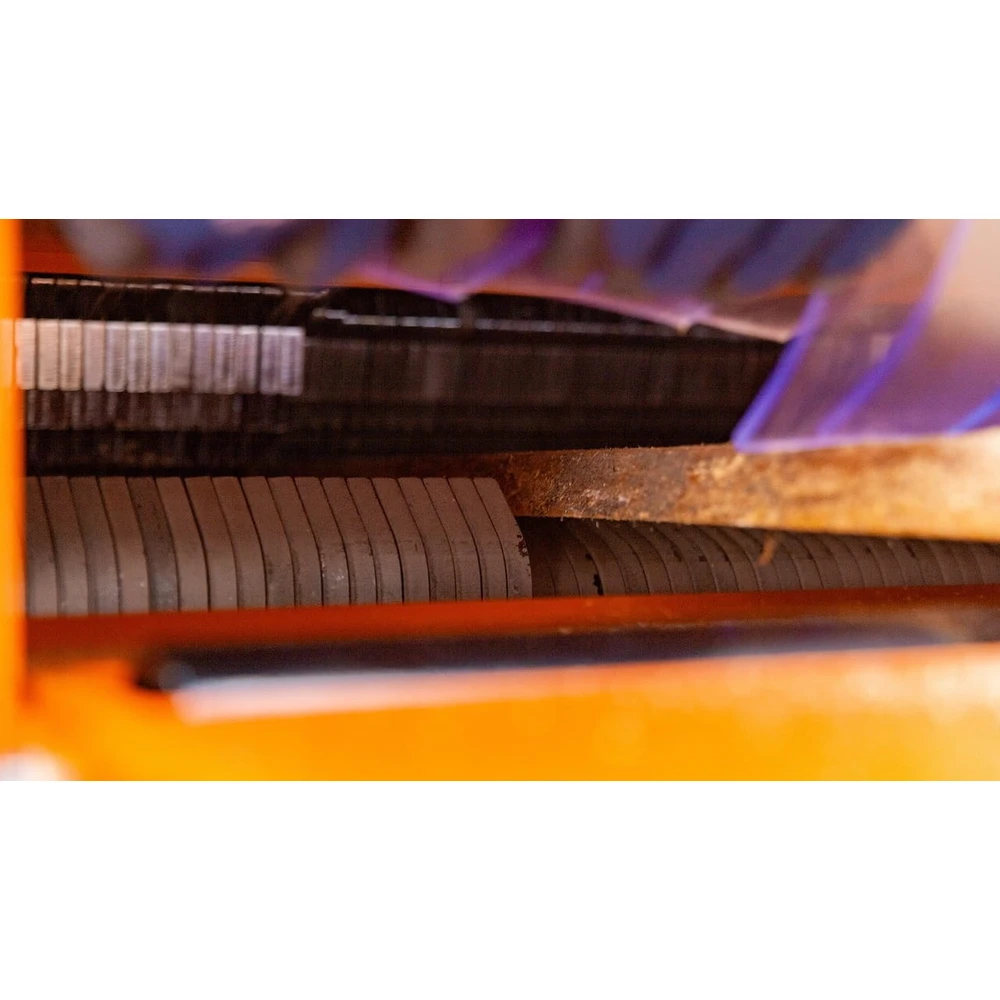

- Two rows of anti-kickback fingers protect the operator

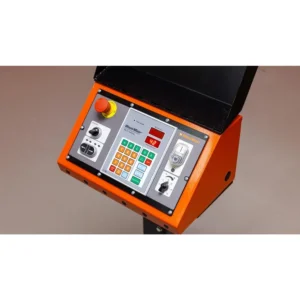

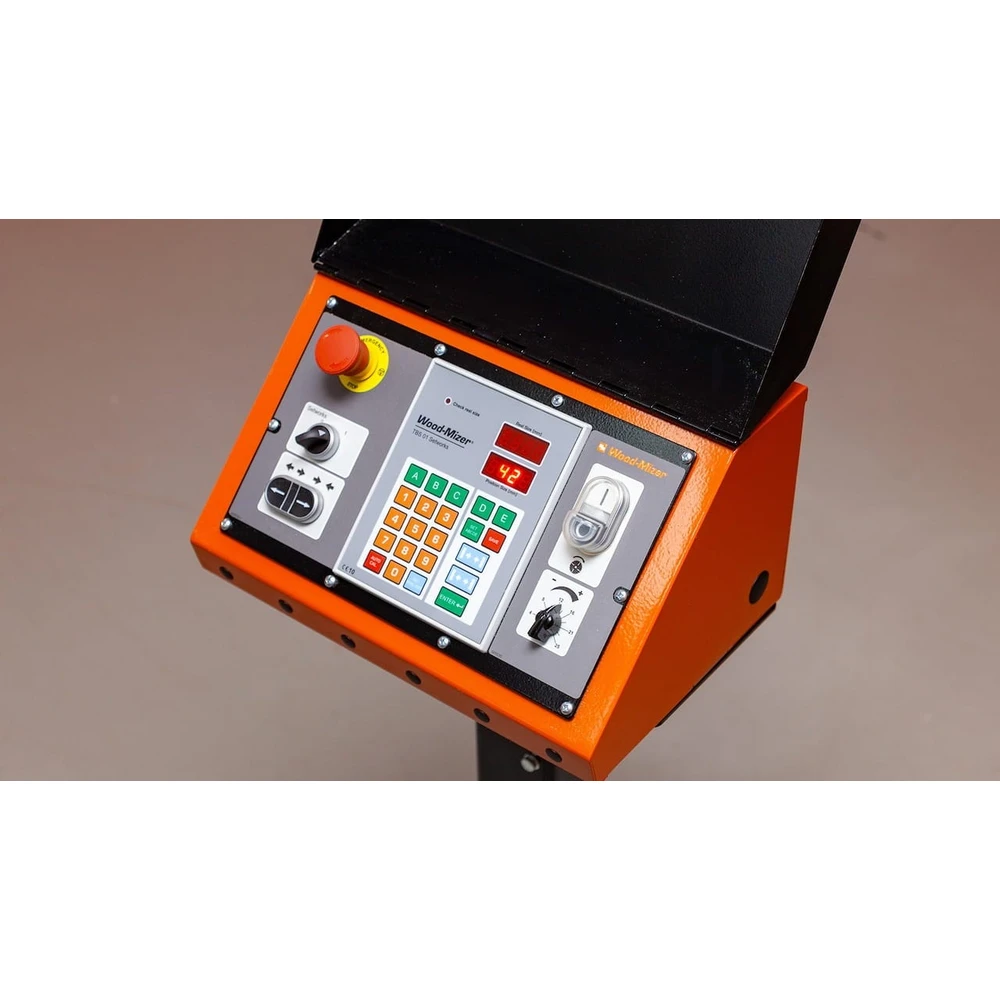

- Remote operator panel with emergency stop and Setworks automatic width control

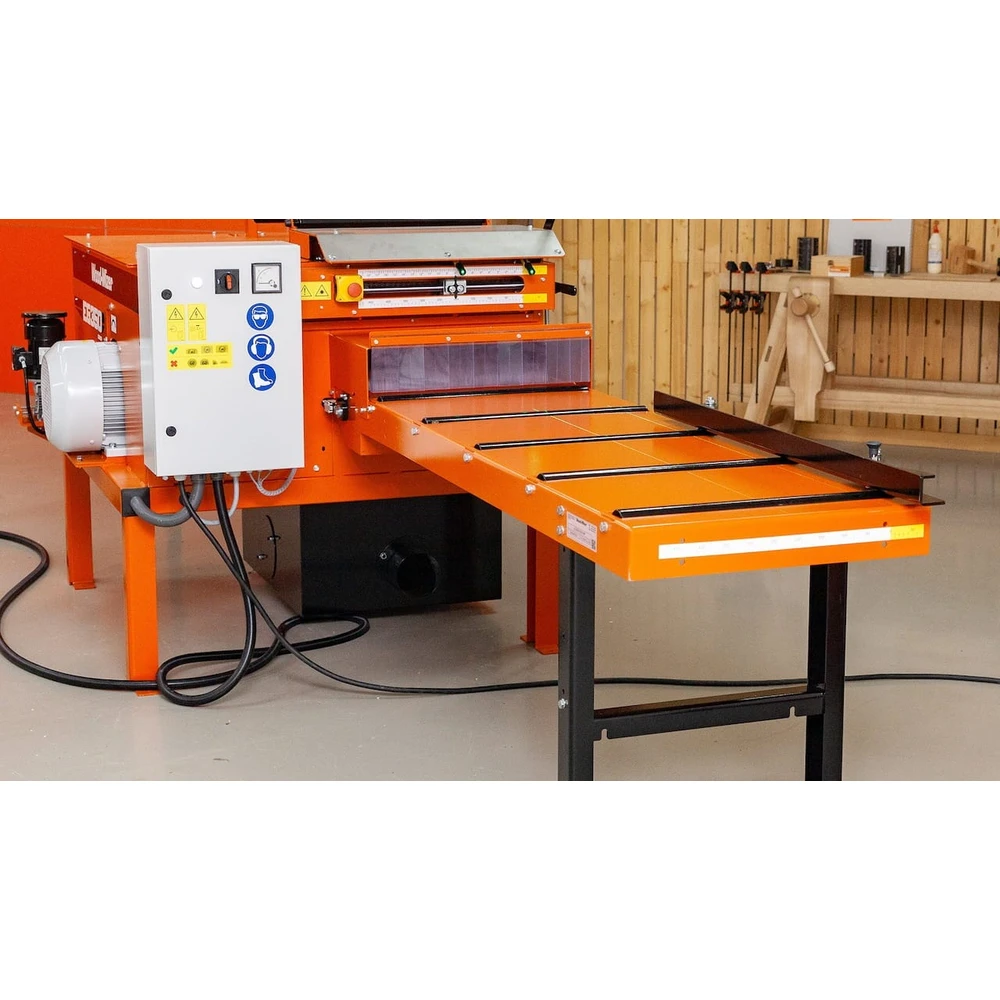

- Modular 1.8 m roller tables, extendable for longer cants

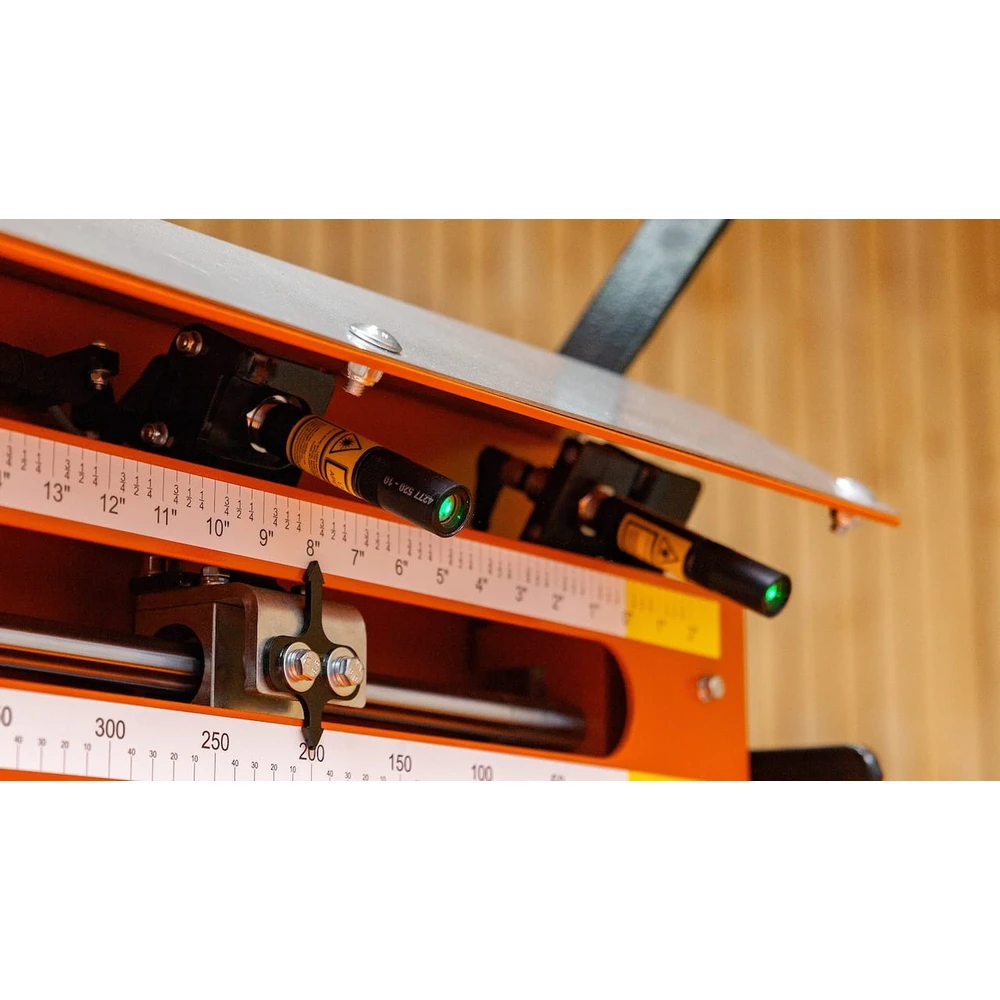

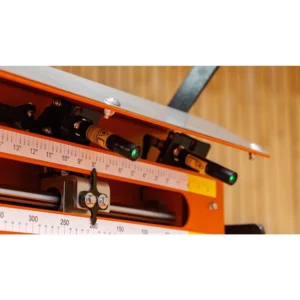

- Optional laser alignment with one fixed and one adjustable laser, plus a metric and imperial scale
- 18.5 kW or 22 kW electric motor options
Benefits
- Designed to boost sawmill productivity and maximise yield from each log
- Greater capacity for larger, thicker material, with cants up to 100 mm thick
- Smooth feeding of different material thicknesses with the double-roller system
- Safer operation with anti-kickback fingers and a remote operator panel placed for the best view of the cut
- Fast, repeatable cutting widths: preset widths and recall them from memory with one button
- Simple material handling on modular roller tables that can be extended
- Power to cut thick hardwoods with an 18.5 kW or 22 kW motor

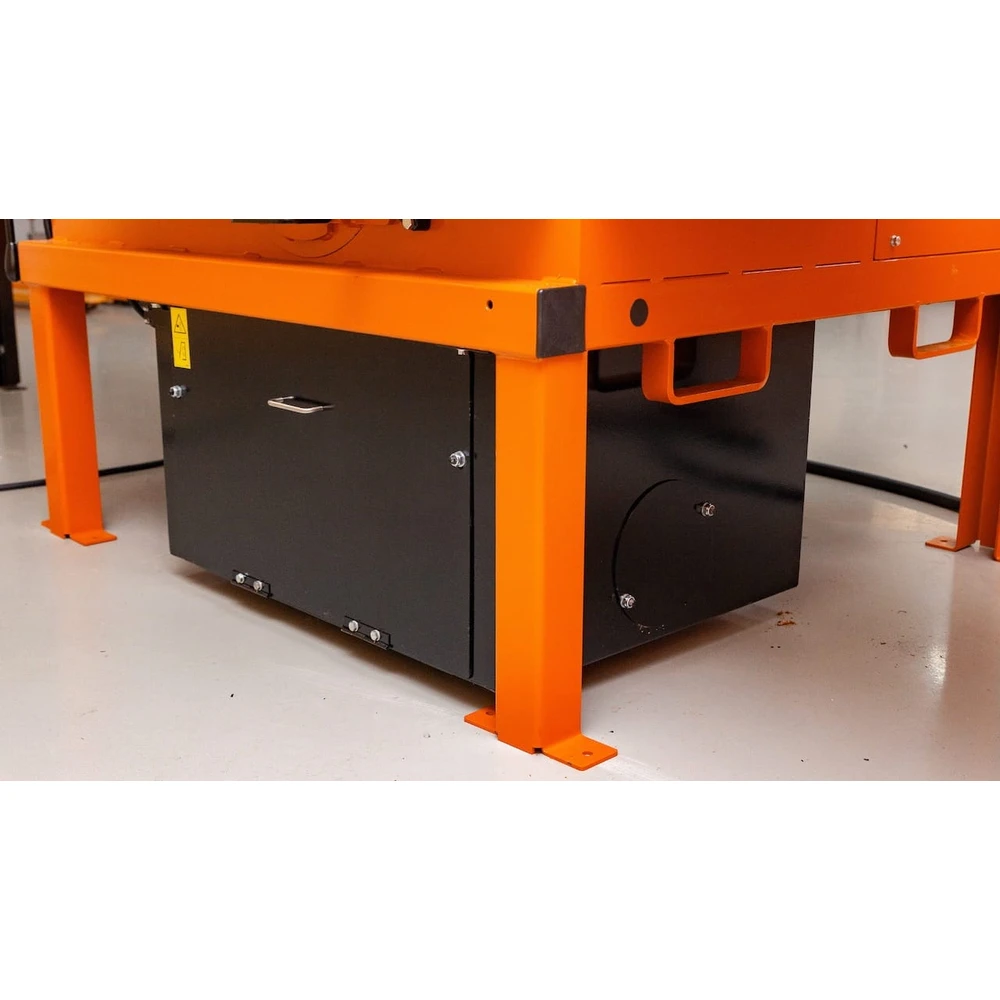

- Tidy working area with the built-in sawdust box, ready for dust extraction
Higher Capacity
Process cants up to 100 mm thick and 550 mm wide, with a maximum cutting width of 420 mm between blades.
Precise Width Control

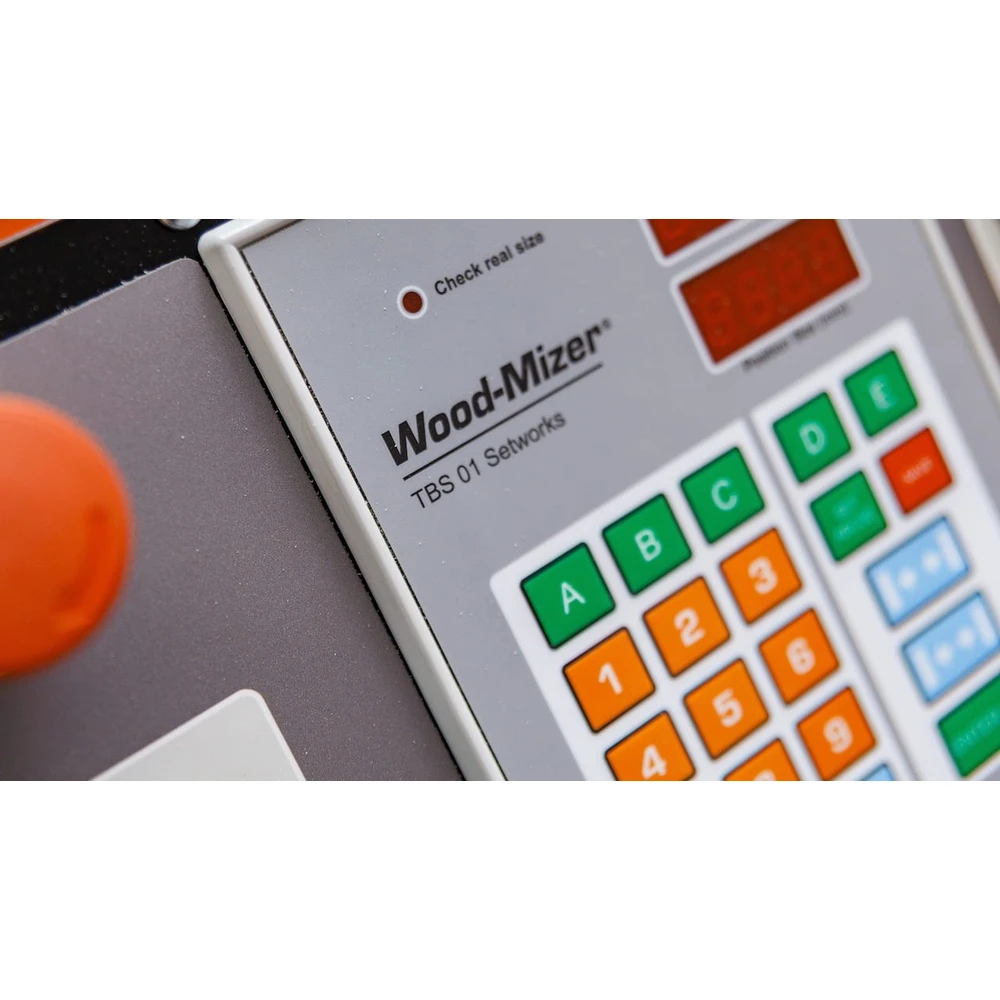

Setworks stores your cutting widths for quick recall, and optional laser guides show the line of the cut.
Smooth, Safe Feeding
A double-roller infeed, four powered rollers and anti-kickback fingers keep feeding smooth and controlled.

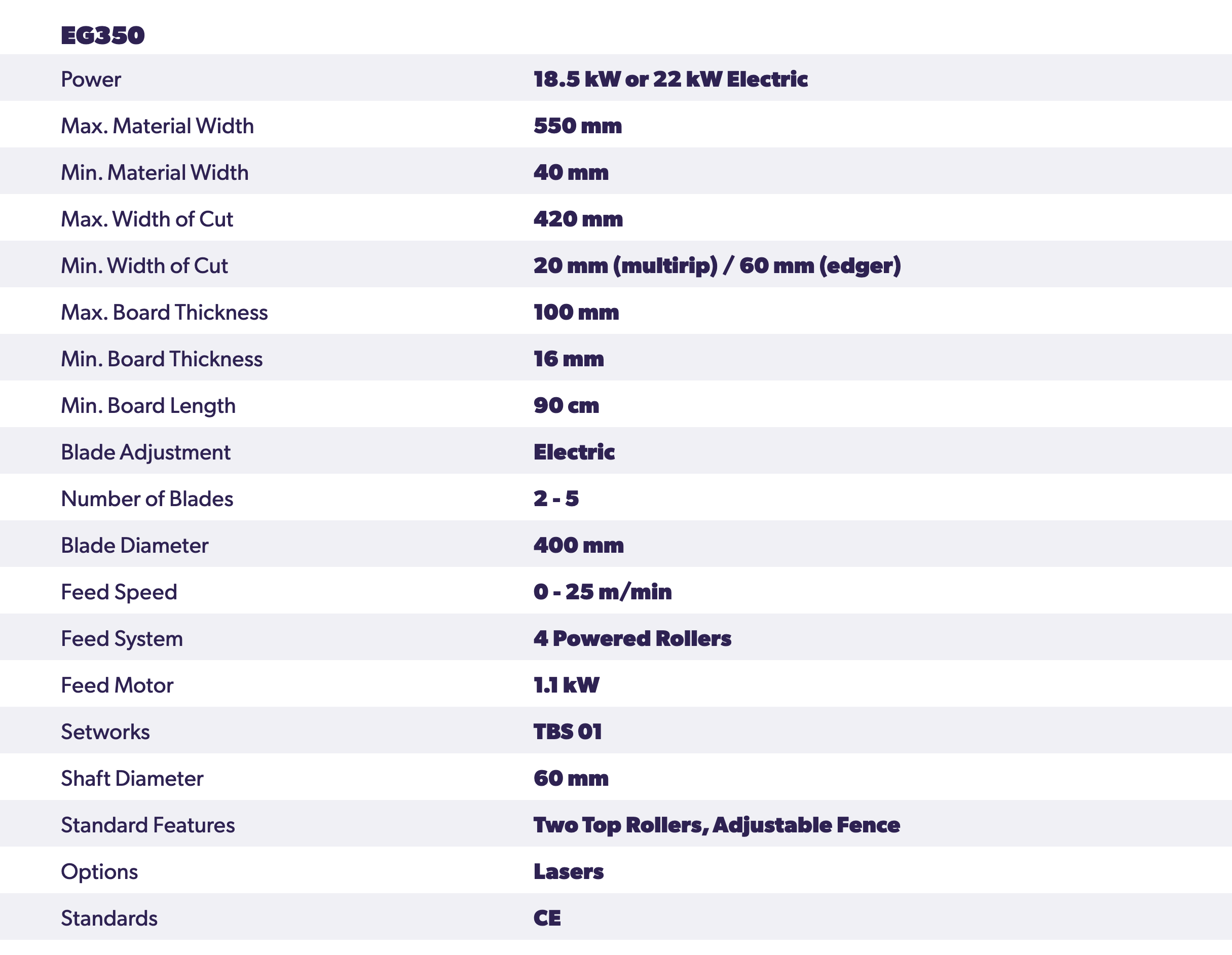

Technical Data
