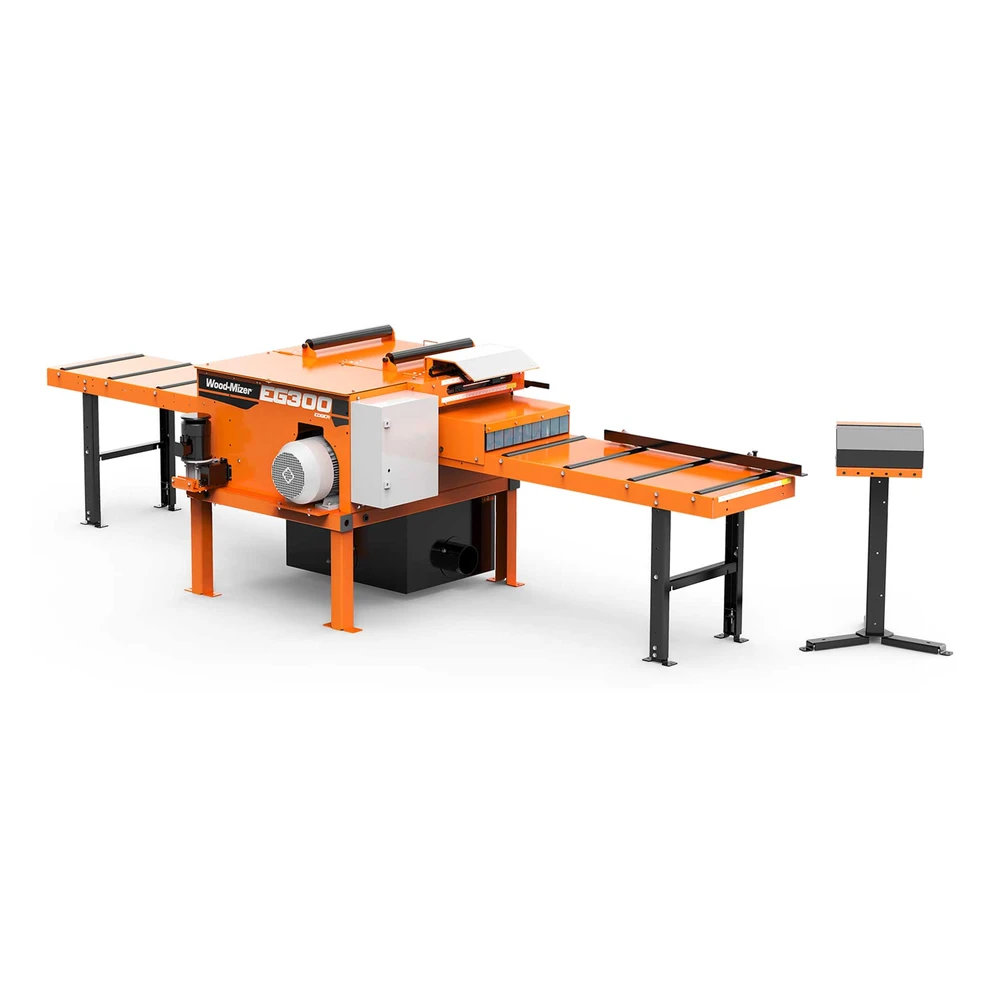

Wood-Mizer EG300 Multirip Board Edger
The Wood-Mizer EG300 is a dual-function board edger and multirip saw that helps sawmills recover more usable timber from every log. It edges rough boards to width in one mode and rips several boards in a single pass in the other, and Wood-Mizer designed it to increase sawmill productivity by up to 30%.
Handling cants up to 60 mm thick and 550 mm wide, with a maximum cutting width of 420 mm, the EG300 uses 350 mm circular blades, electronic Setworks for fast blade positioning and four powered feed rollers. Its modular design makes it straightforward to transport, assemble and fit into an existing sawmill line, and it is available with a 15 kW or 18.5 kW electric motor.
Key Features
- Dual function: edging mode and multirip mode in one machine
- Handles cants up to 60 mm thick and 550 mm wide
- Maximum cutting width of 420 mm between blades

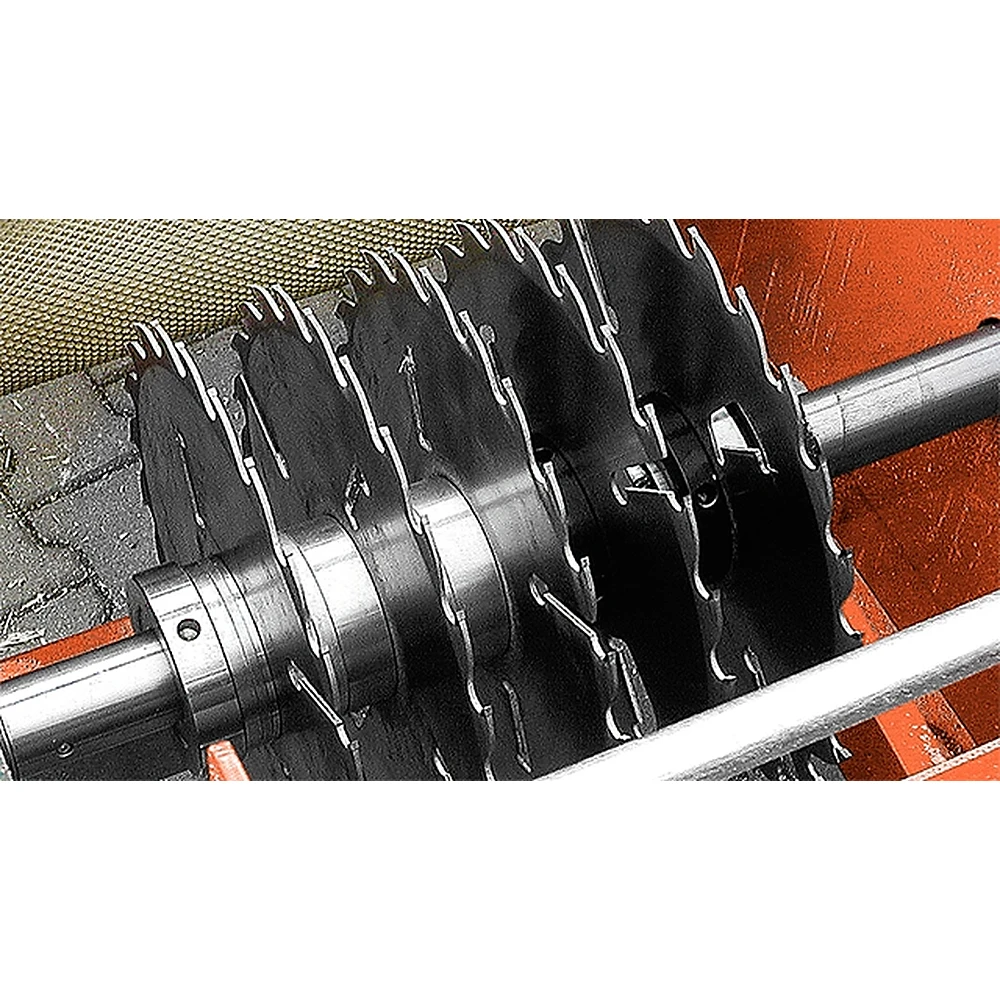

- Two 350 mm circular blades as standard, one fixed and one adjustable from the control panel
- Optional MultiRip blade kit adds three more blades, for up to five blades in multirip mode
- Spacer widths can be adjusted and customised on request

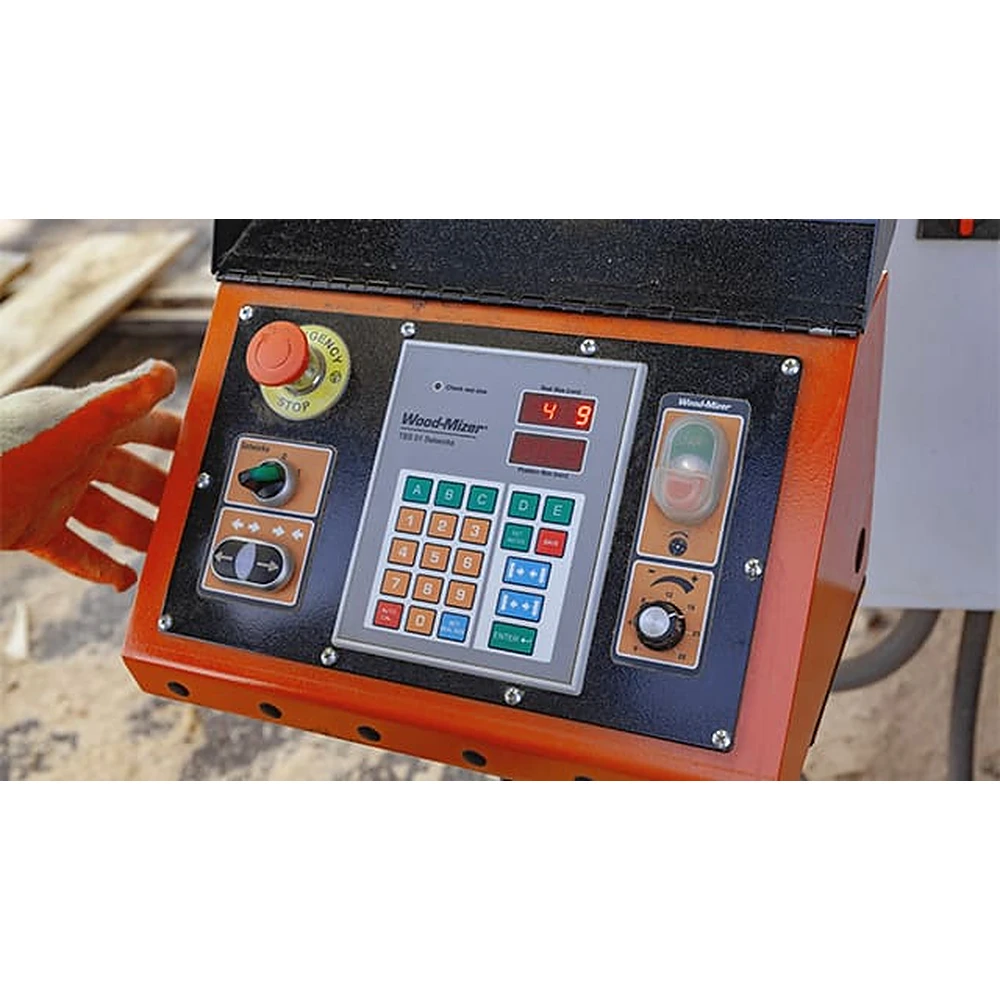

- Electronic Setworks (TBS 01) for fast, accurate blade positioning

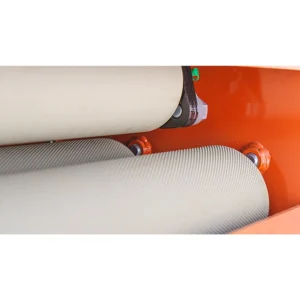

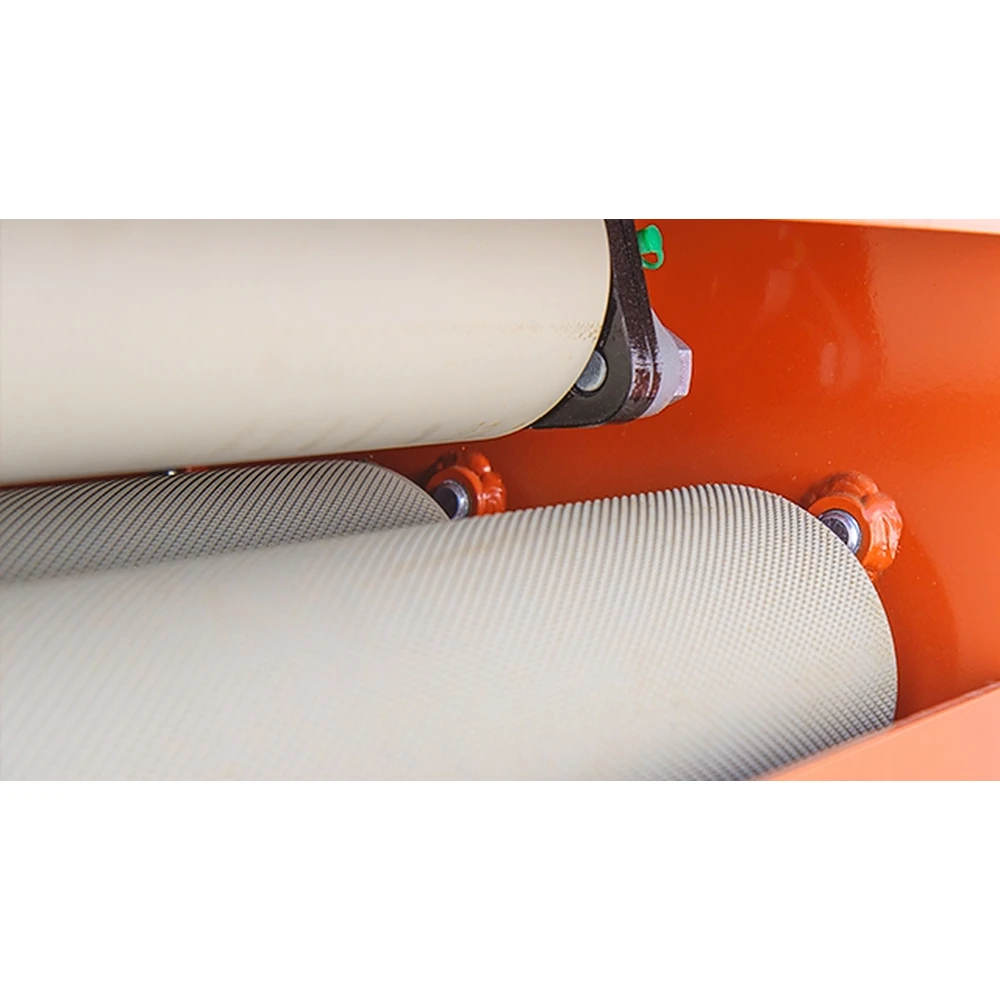

- Four powered feed rollers with a feed speed of up to 25 m/min

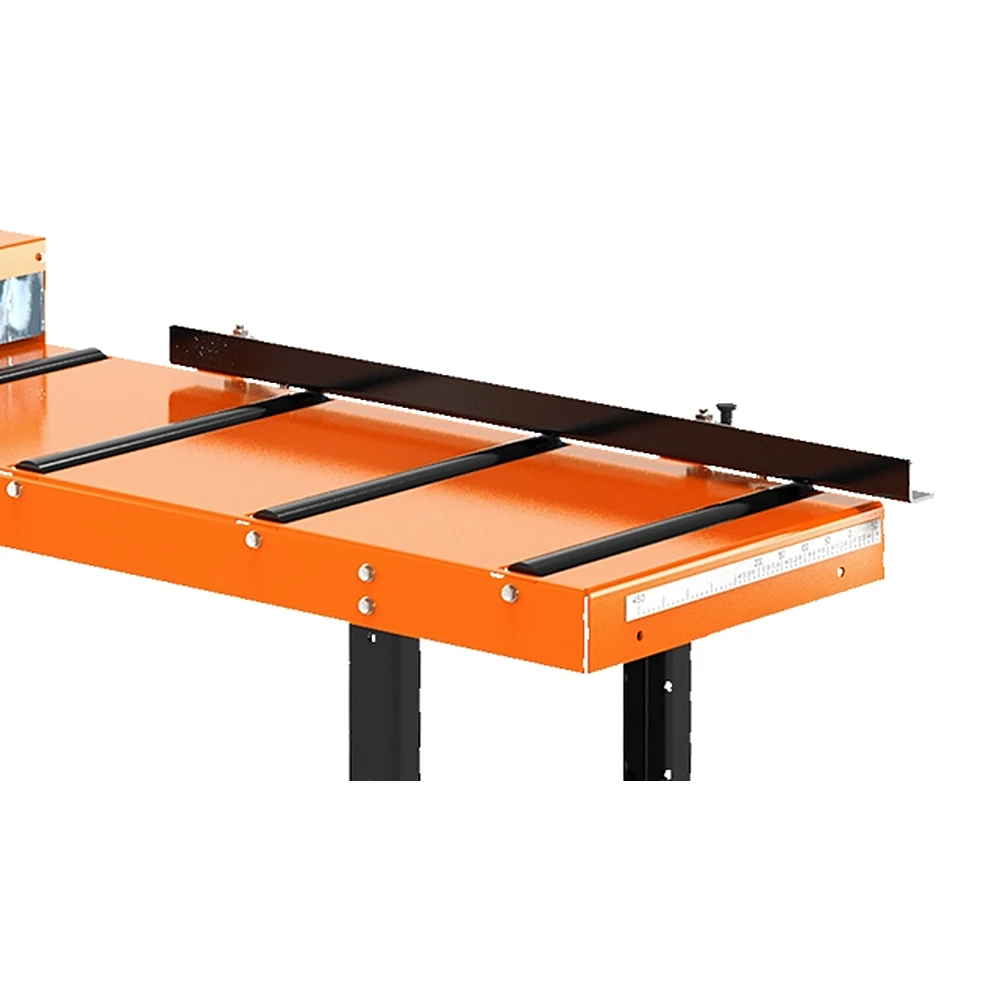

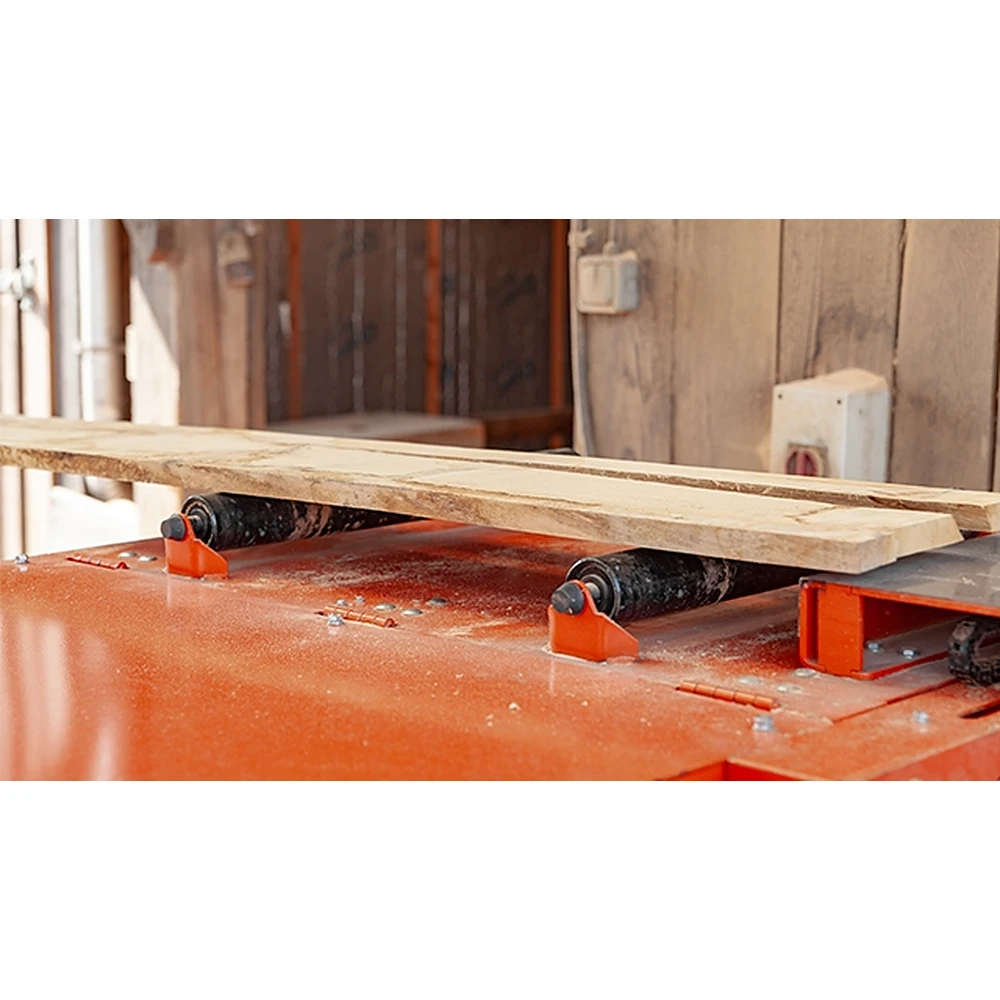

- Two top rollers, return rollers for multiple passes and an adjustable board fence

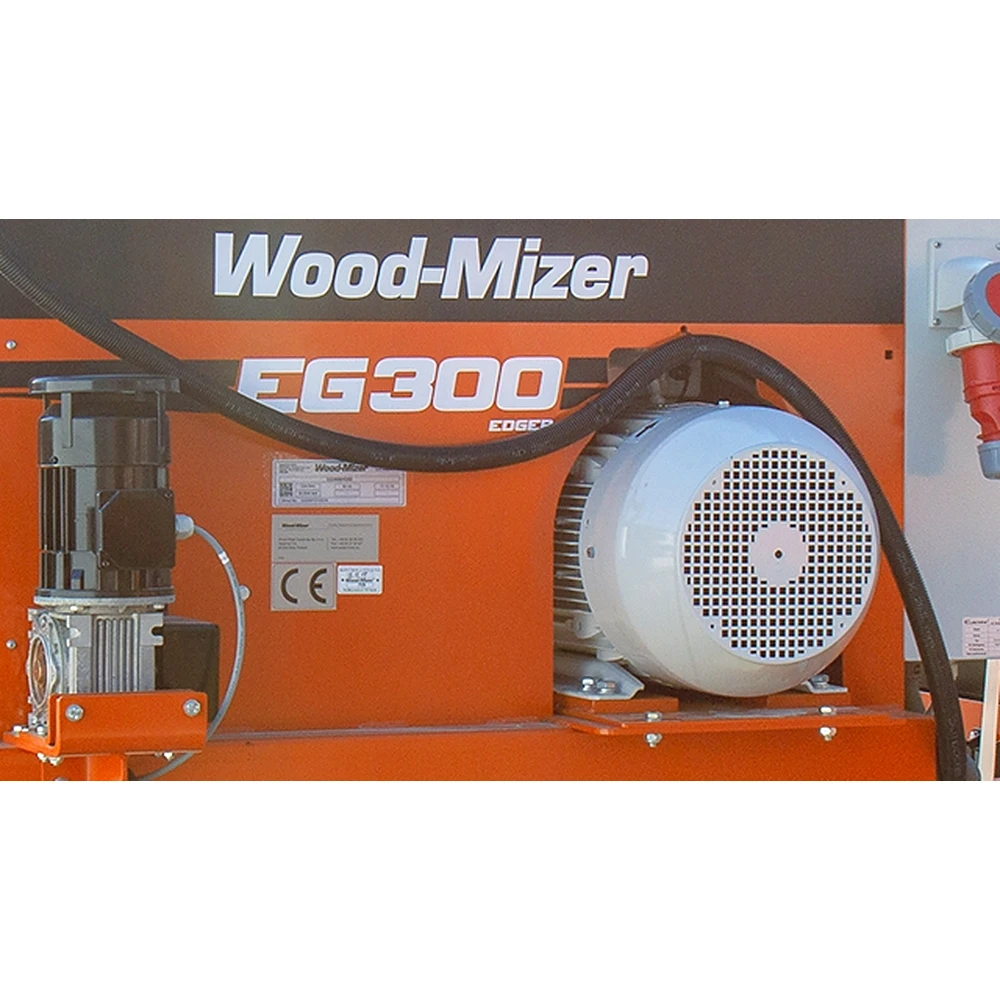

- 15 kW or 18.5 kW electric motor options
- Optional laser guide for greater cutting precision
Benefits
- Designed to increase sawmill productivity by up to 30%
- Turns more of each log into valuable boards and cants
- Switch between edging and multirip modes to suit the job
- Quick, accurate blade positioning for less set-up time
- Modular design with a central saw unit, infeed table and outfeed table
- Easy to transport, assemble and integrate into your workflow
- Modular roller tables can be added to extend handling capacity

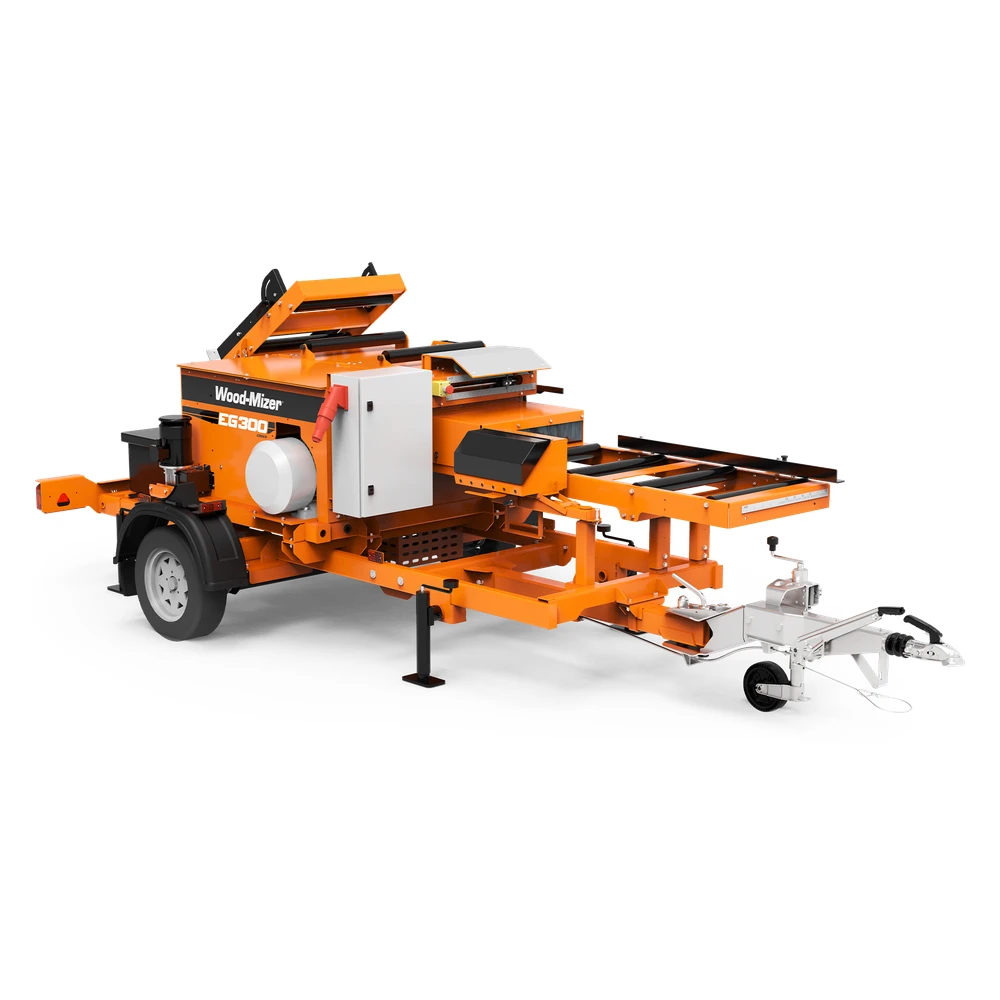

- EG300 Mobile trailer version available, with a braked axle (1500 kg GVWR) and a hitch that folds to the side when not in use

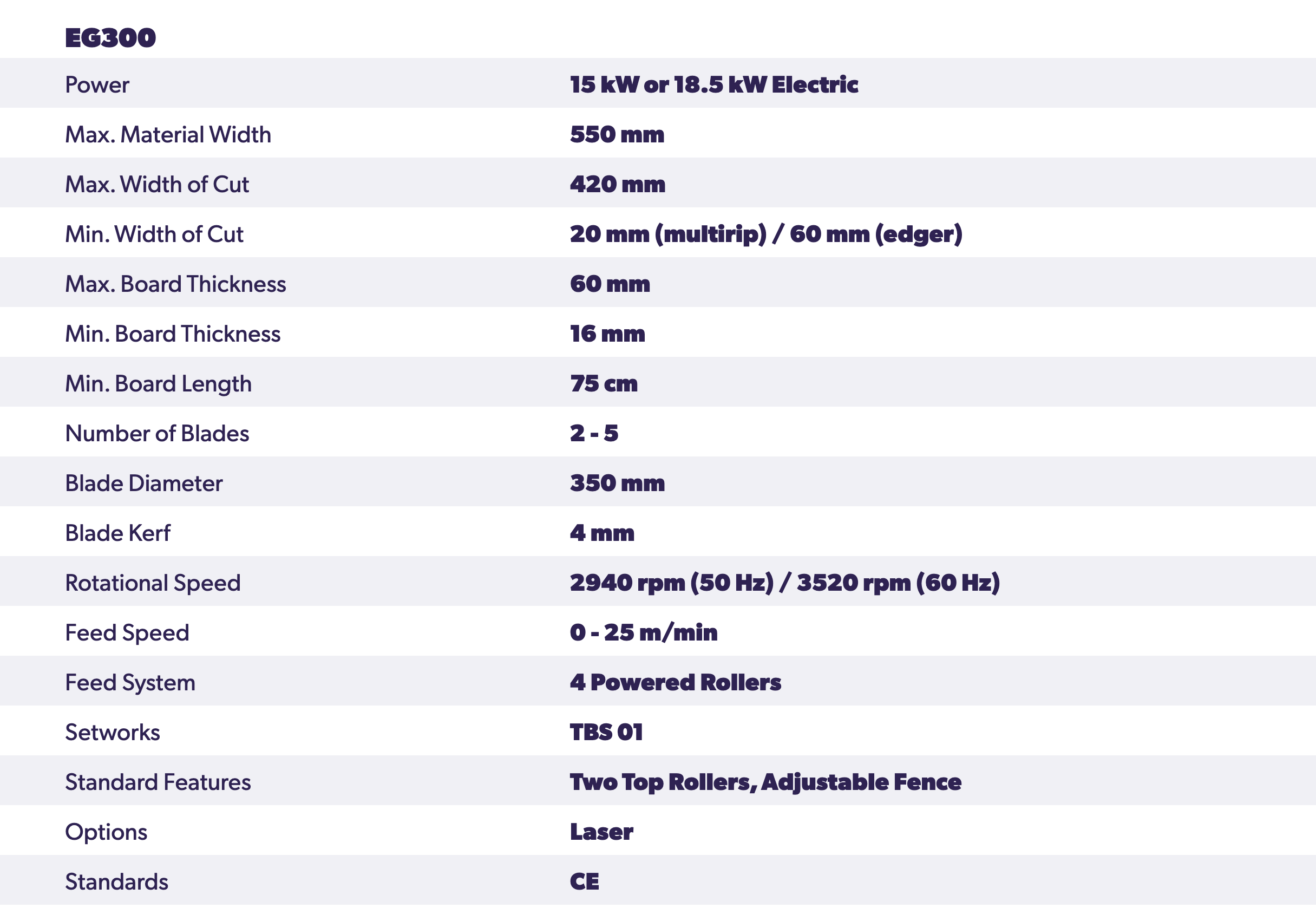

Technical Data
