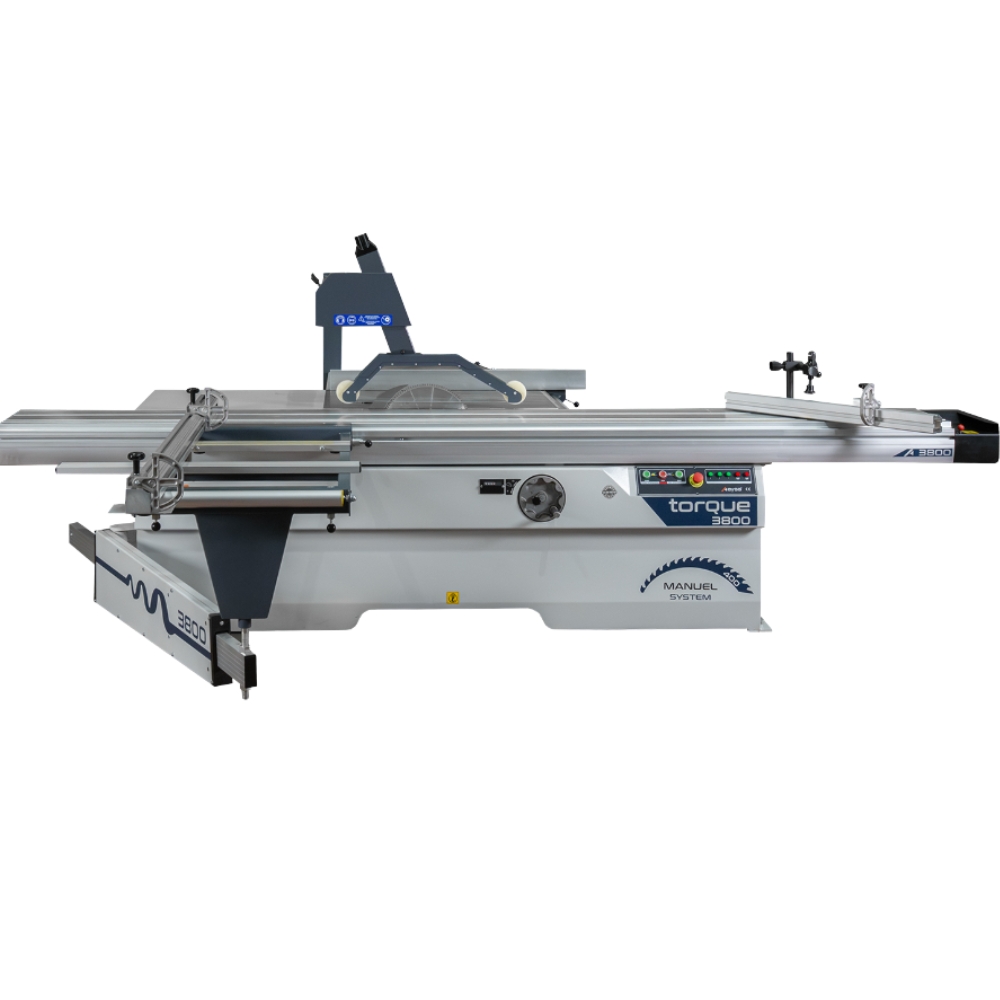

Aysa Group Panel Saw - Torque
The TORQUE sliding table saw is designed for high-demand panel processing, combining a heavy-duty machine structure with millimetric cutting precision. Built around a high-strength chassis and advanced sliding table system, it supports stable handling of large-format panels while maintaining consistent accuracy across different cutting applications.
A high-strength aluminium sliding table, available in 3200 mm and 3800 mm lengths, delivers smooth, deviation-free movement even over long cutting distances. Paired with a 5.5 kW standard main motor and support for saw blades up to 400 mm, TORQUE is equipped to handle thicker and more demanding materials without compromising finish quality.
Developed with a focus on durability, power, and precision, TORQUE is suited to modern production environments where consistent performance and structural stability are essential.
-
Key Features
-
300 mm main saw blade with cutting height up to 78 mm
-

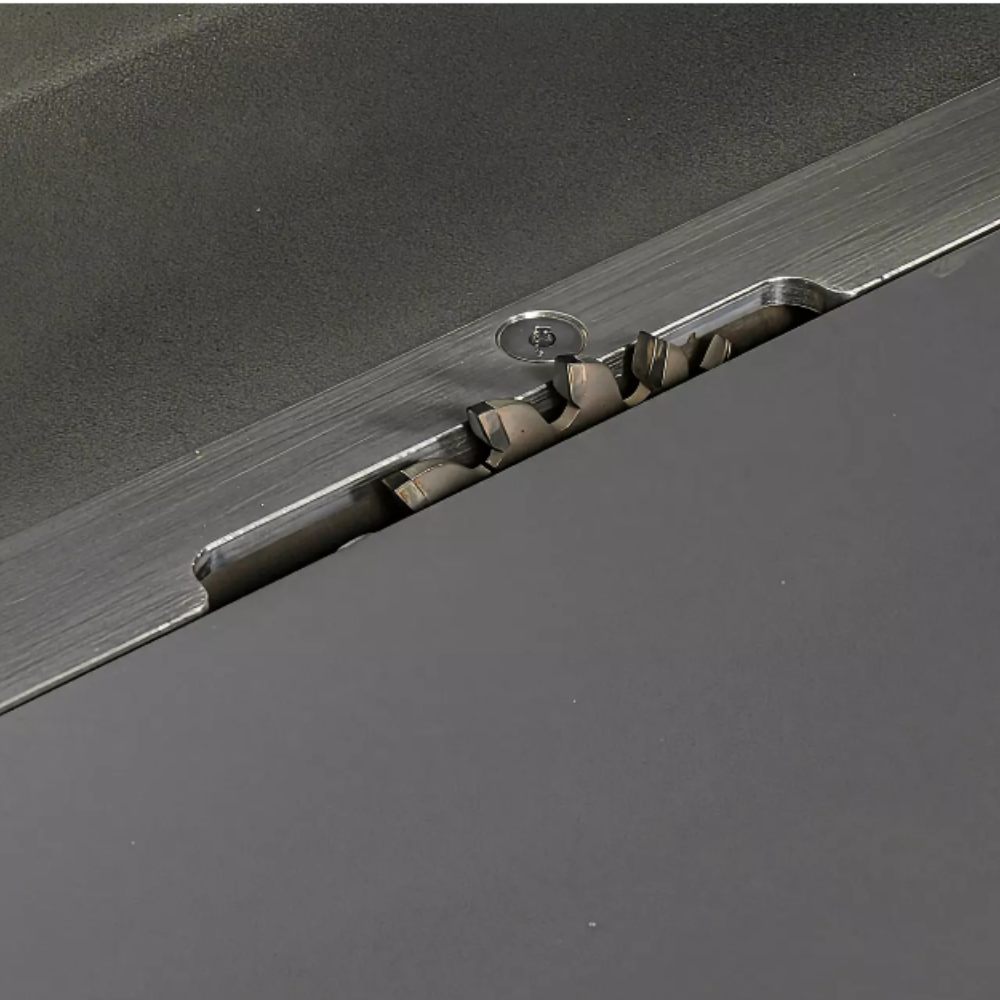

125 mm scoring unit for laminated and coated panels
-
Sliding carriage lengths up to 3800 mm for full panel processing
-
Tilting saw unit (0°–45°) for angled cutting operations
-
4 kW main motor (optional 5.5 kW)
-
Large rear and side support tables for panel stability
-
Key Benefits
-
Clean cuts on laminated boards with integrated scoring saw
-
Precise panel sizing using the long sliding carriage
-
Greater cutting flexibility for angled workpieces
-
Consistent cutting stability on large panels
-
Reliable power for demanding cutting tasks
Upgrade Your Panel Saw with HandSafe System: Enhance Safety, Boost Productivity
Take your panel saw to the next level by integrating the HandSafe System – the ultimate safety upgrade designed to protect your most valuable asset: your workforce.
With real-time hand protection and automated safety features, the HandSafe System minimizes the risk of hand injuries and enhances operational efficiency.
Safeguard your employees while improving your panel saw’s performance, making your workplace both safer and more productive.

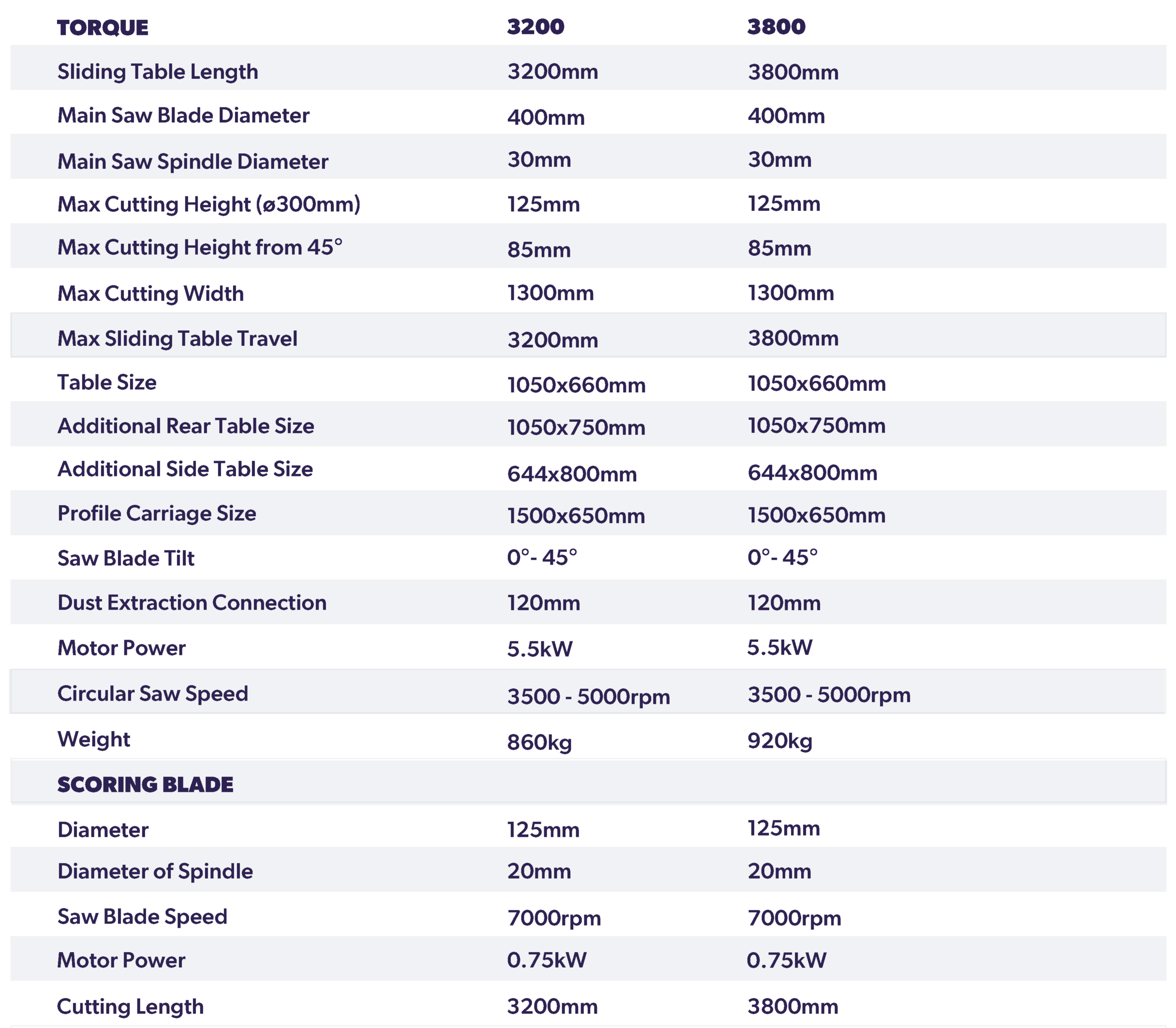

Technical Data
