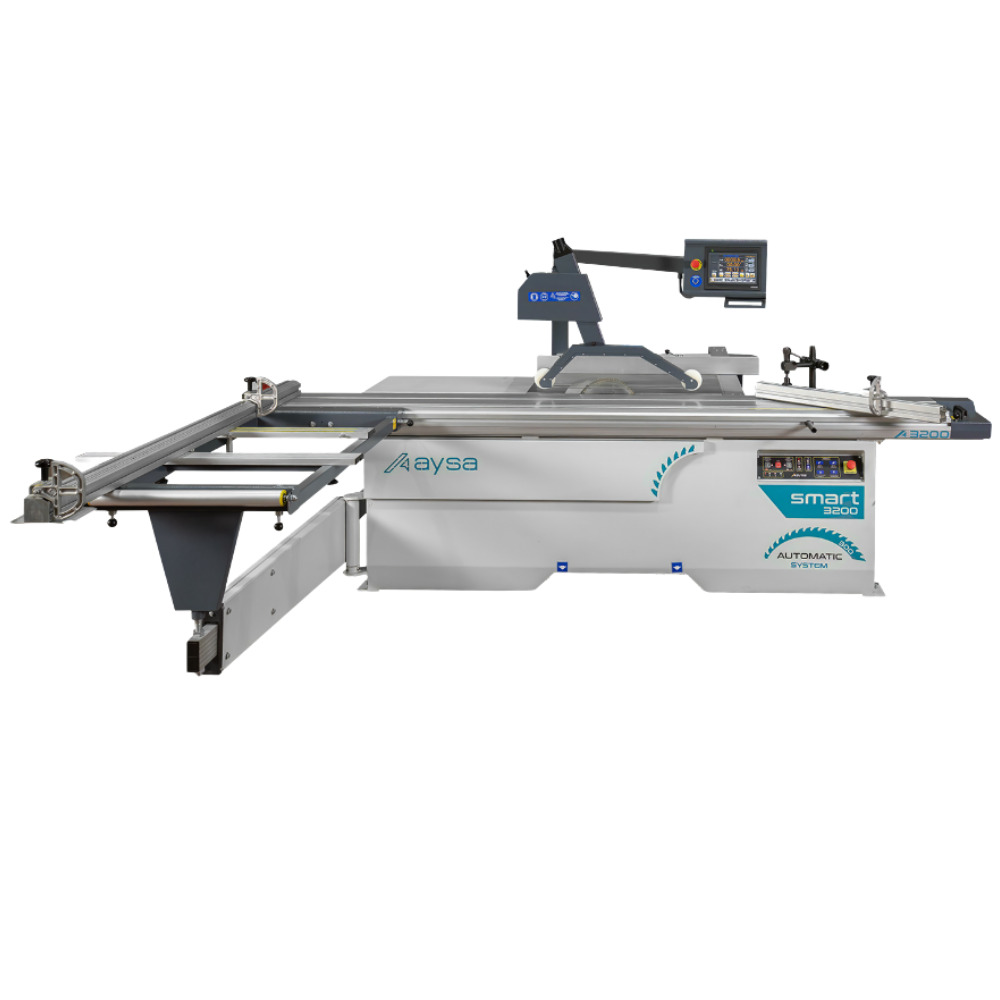

Aysa Group Panel Saw - 3200 Smart
The SMART sliding table saw is built with a compact, high-strength structure, designed for stable operation during continuous production. Its rigid construction supports vibration-free cutting, particularly during longer runs and repeated work.
A top-rail aluminium sliding table system provides smooth, low-friction movement across the full cutting length, helping maintain accuracy even when processing larger panels. The machine is designed to hold alignment during ±45° angled cuts, where consistency is critical.
SMART includes a digital control system with recipe memory and a 120 mm automatic rip fence, allowing operators to store and recall settings and reduce manual adjustment between jobs. A Ø125 mm conical scoring unit, with mechanical height and axis adjustment, supports clean edge finishes on laminated materials.
Key Features
- Digital Control with Recipe Memory
Stores job settings for faster setup and consistent repeat work - 120 mm Automatic Rip Fence
Supports accurate positioning and reduces manual adjustment - Top-Rail Aluminium Sliding Table
Minimises friction and provides smooth, deviation-free movement - Sliding Table Length Options (3200 mm & 3800 mm)
Suitable for different panel sizes and workshop requirements - Scoring Unit (Ø125 mm Conical Blade)
Mechanically adjustable with zero-backlash height and axis control - High Accuracy in ±45° Tilting Cuts
Maintains alignment during angled processing
Digital Control & Automation
The digital control system is one of the defining features of the SMART panel saw, built to support faster setup and more consistent production output.
Its recipe memory function allows operators to store and recall job parameters, making it easier to repeat previous settings without resetting the machine each time. This is particularly useful in batch work, where consistency across components is important.
The machine also features a 120 mm automatic rip fence, helping improve positioning accuracy while reducing the reliance on manual adjustment. Together, these functions support a more controlled workflow and help maintain repeatable results across ongoing production.
Upgrade Your Panel Saw with HandSafe System: Enhance Safety, Boost Productivity
Take your panel saw to the next level by integrating the HandSafe System – the ultimate safety upgrade designed to protect your most valuable asset: your workforce.
With real-time hand protection and automated safety features, the HandSafe System minimizes the risk of hand injuries and enhances operational efficiency.
Safeguard your employees while improving your panel saw’s performance, making your workplace both safer and more productive.

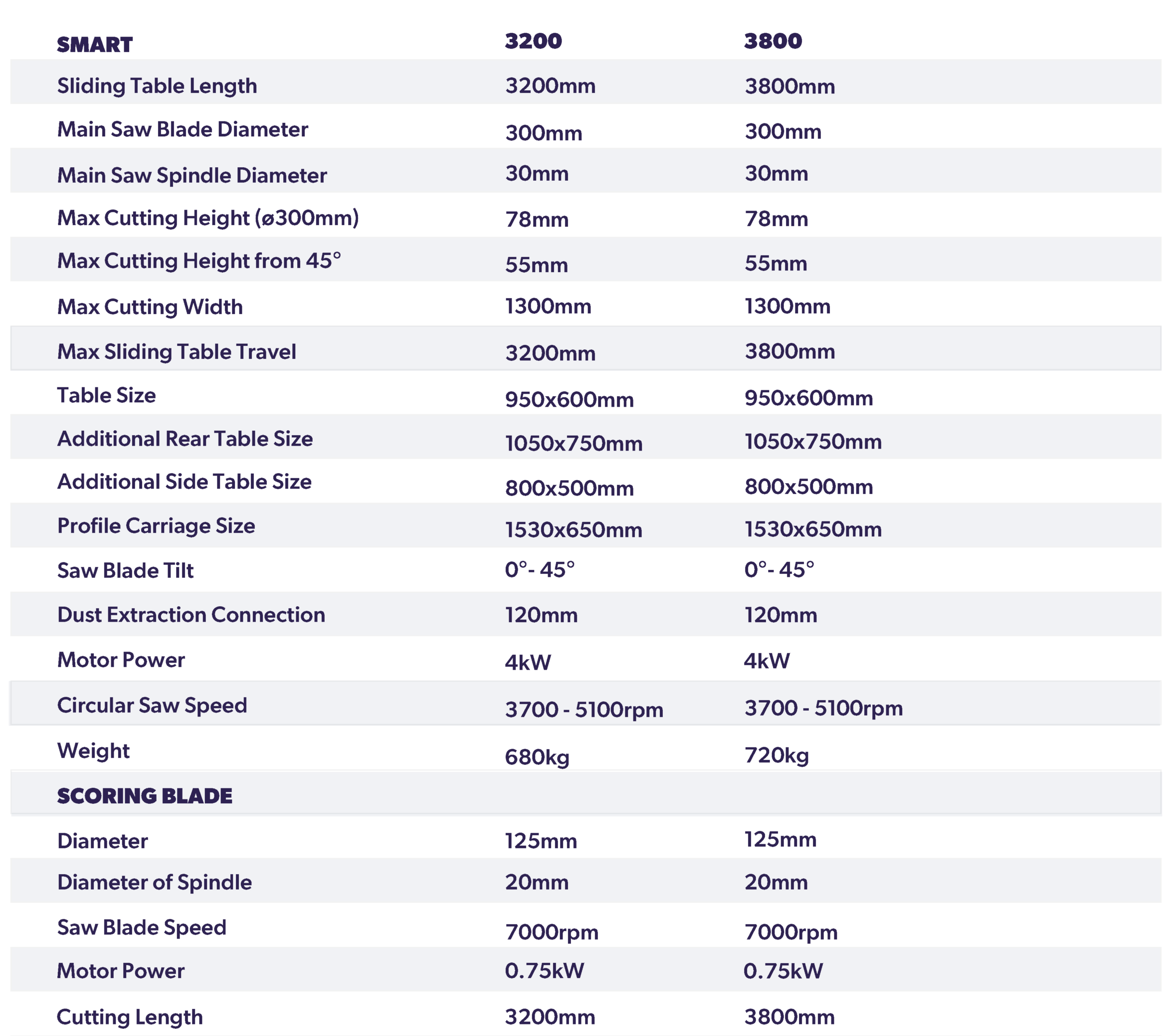

Technical Data
